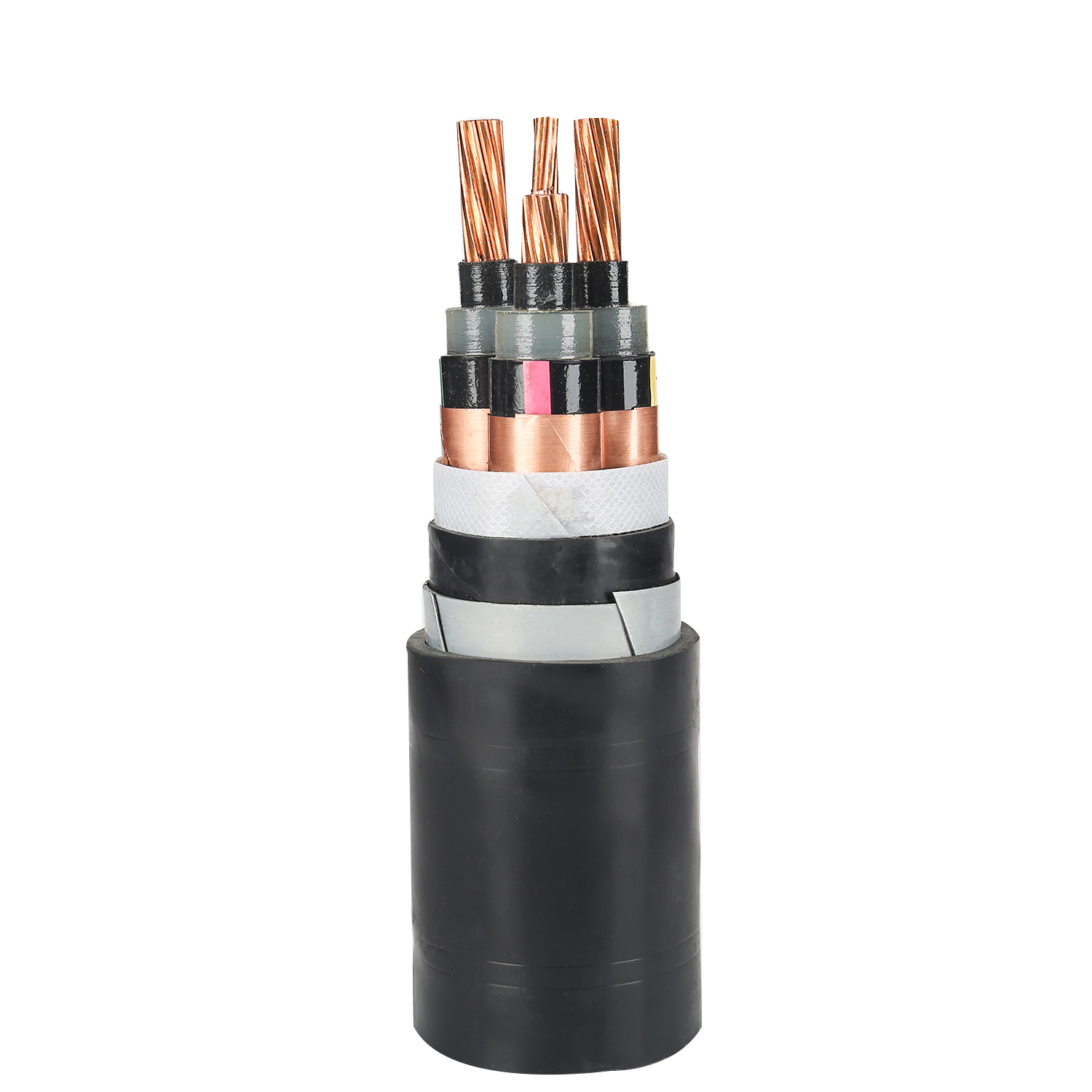

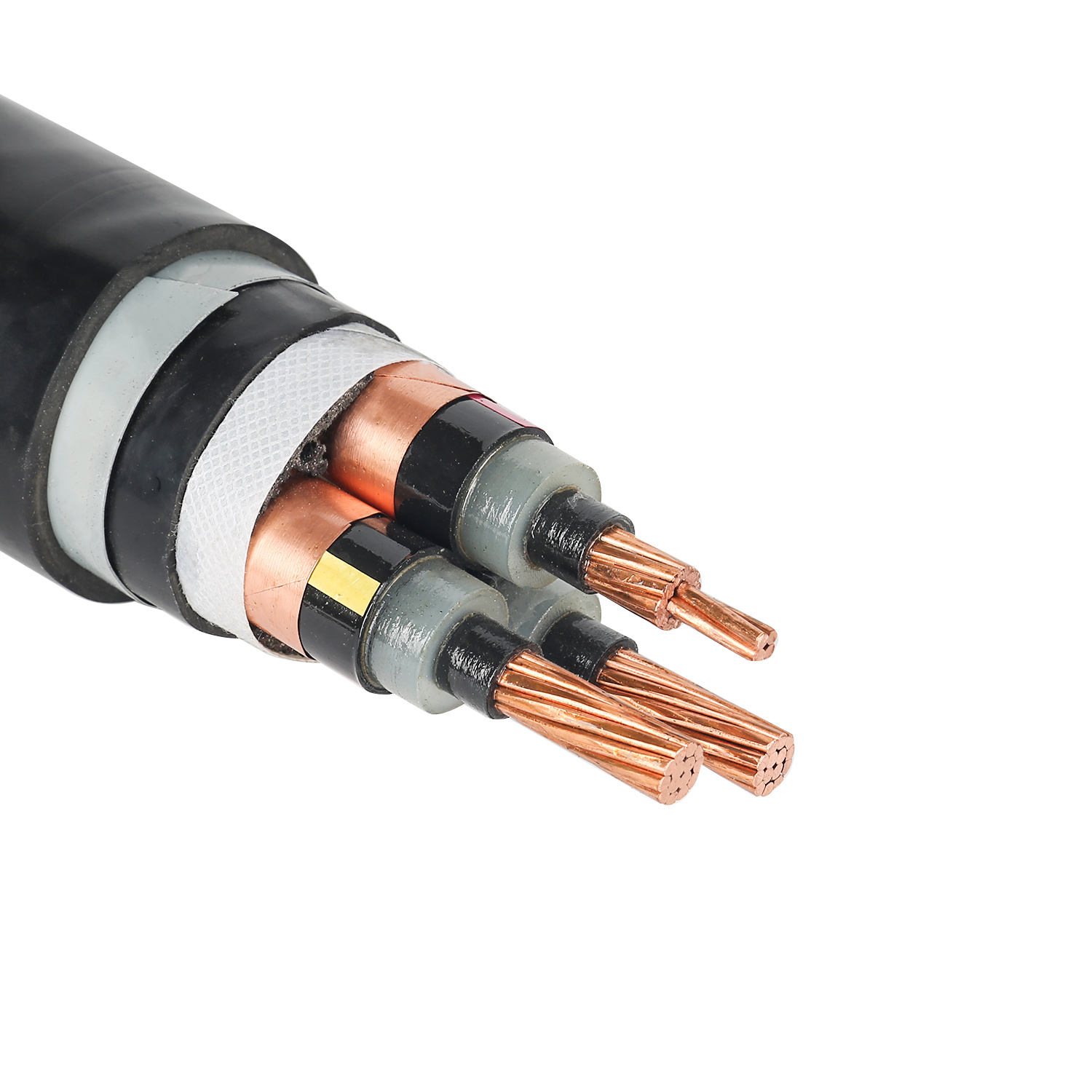

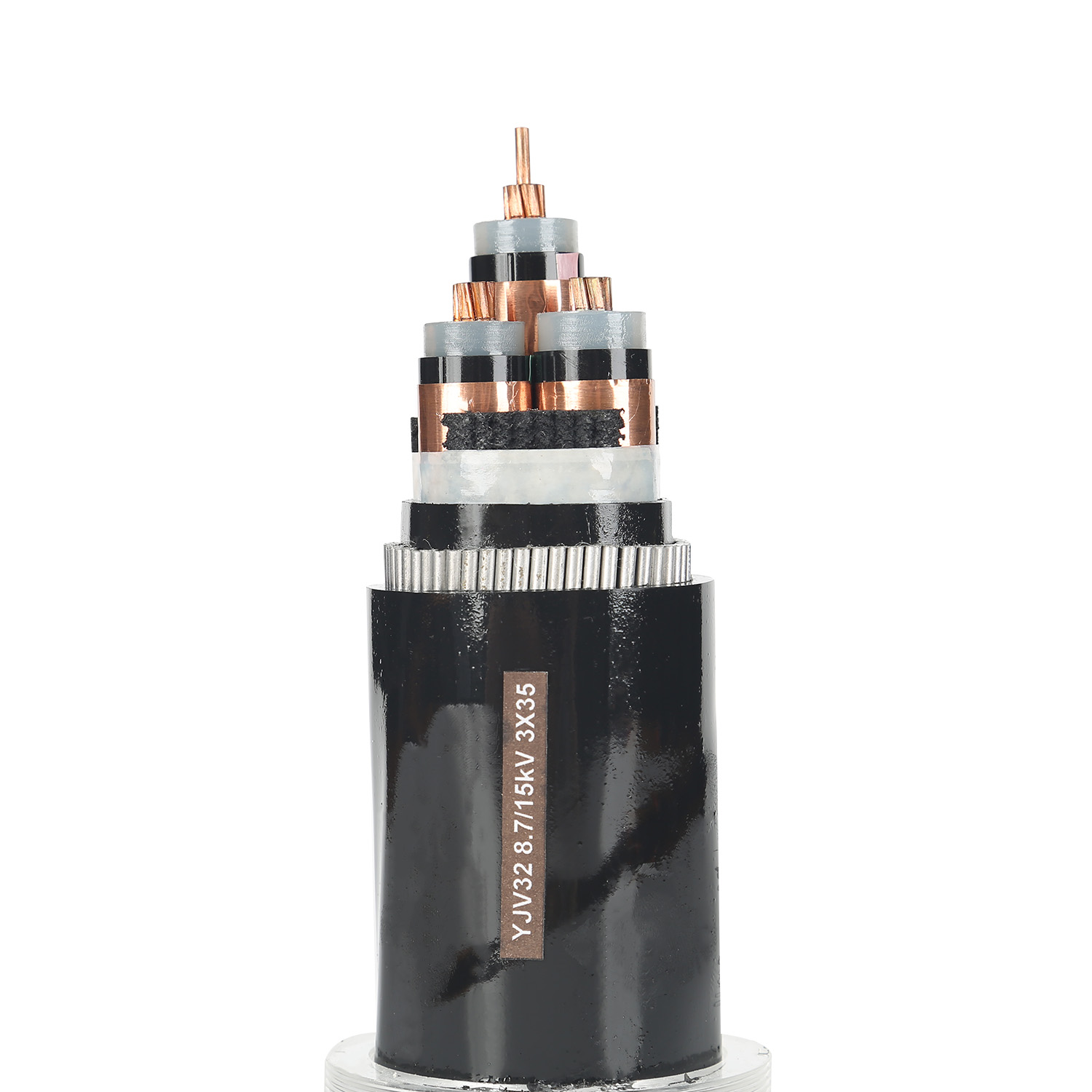

Triplici core xlpe insulatas potestatem funem cum ferro filum armouring ad medium voltage Applications

5 0 Recensiones
Hoc triplum nucleum XLPE insulatum funem potentiae cum filo ferreo armaturae (SWA) destinatur ad distributionem mediae intentionis, ubi resistentia mechanica et umor critica sunt. Ad IEC 60502-2 fabricatum est ad voltationes aestimandas ab 3.6/6 kV ad 26/35 kV, cum conductoribus aeris vel aluminii, XLPE velit, galvanizato ferro filo armaturae, et PVC, PE, vel LSZH inauguratione. Constructionis tria media subsidia in reticulis urbanis, in reticulis urbanis, plantarum industrialium, cuniculis, fodinis, et officinas directae-sepultae sustinet. Arma filum ferreum contra comminutionem, impulsum et damnum rodens protegit, institutionem in fossis, ductibus, sagittis verticalibus, et areis motui terrae subiectis permittens. Pro emptoribus, necessitatem extra mechanicam tutelam reducit ac sepulturam directam simplificat.
Availability:
quantitas;
Inquire Addere ad cartallum

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

1. intentione Rating (U₀ / U et um)

Funem eligite secundum methodum intentionis et systematis fundationis. U₀ est aestimata potentia-frequency voltatio inter conductorem et velum/armum; U est aestimatio intentionis inter conductores. Maxima ratio voltage Um non debet valorem certum dilabi non excedere.

Systema Nominale Voltage Cable Rated intentione U/U Maximum System Voltage Um
6 kV3.6/6 kV7.2 kV
10 kV6/10 kV12 kV
15 kV8.7/15 kV17.5 kV
20 kV12/20 kV24 kV
30 kV18/30 kVXXXVI KV
XXXV KV26/35 kV42 kV

Ad systemata non fundata seu sonora-fundata, altiorem U₀ rating desumo. Ad systemata efficaciter fundata, vexillum U/U rating plerumque sufficit.

2. Conductor Material and Cross-Section

  • Aeris: conductivity superior, brevis circuitu melioris effectus, ad circulos criticos et spatium institutionis limitatum accommodatus.

  • Aluminium: Pondus et impensa inferior, ad itinera longa apta ubi pondus et praevisiones sunt.

  • Crux-sectionis: Determinare per onus currentis, breve currentis circuii, gutta intentionis, temperatura ambientis, resistivity soli scelerisque, et factoris aggregationis. Typical three-core media voltage range: 25-400 mm².

III. Vitulationum

XLPE velit continuum conductorem temperatura XC°C et brevis circuitus temperatura 250°C usque ad 5 secundis. Crassitudo insulationis ab IEC 60502-2 definitur secundum aestimationem intentionis.

4. Steel Wire Armor

Elige galvanized ferro filum pro armis:

  • Dirige sepulturam sine addito aquaeductu

  • Verticalis spicula et praeceps itinera distrahentes vires requirunt

  • Areas cum terra motus, gravis negotiationis, vel rodent periculo

  • Ponte seu cuniculum palmorum ubi mechanica damnum potest

Ad ambitus valde mordaces, additamenta anti-corrosionis stratis vel PE supra vaginam denota.

5. Oversheath Material

  • PVC: Generalis propositi, flammea retardans, sumptus efficens.

  • PE: Rectius humor resistentiae, praelatus ad sepulturam directam et umida loca.

  • LSZH: Humilis fumi et halogen-liberi, cuniculis, substationibus sub tectis, et infrastructura publica.

6. Installation Opera

  • Sepultura directa: Usus SWA cum PE vel PVC supersternetur; considerans solum scelerisque resistentiam et sepulturae profunditatem.

  • Ductus et fossae: SWA extra tutelam praebet in destructione et contra damnum sequens.

  • Verticalis spicula: Ferro filum armatura funem pondus sustinet; computare contentionem trahendi et sustentandi iustae.

  • Cuniculi et itinera umbratica: LSZH oversheath requiri ad salutem ignis.

  • Pons vel palmus longus: Comproba tensio trahens, suffulta spacing, et flectens radium.

7. tendentes Radii et Drum Longitudo

Radii flexionis minimum est typice 12-15 temporibus funem diametri exterioris ad institutionem staticam, et XX temporibus in destructione. Lego longi- orum secundum meatus longitudinem, articulorum numerum, limites transportandi, et modum institutionis.

8. signa

Denota applicabile vexillum: IEC 60502-2, GB/T 12706.2, BS 6622, VDE 0276-620, vel specialia requisita.

Technica cubits

Parameter Latin Range / Option
VexillumIEC 60502-2, GB/T 12706.2
Rated intentione U/U*3.6/6 kV, 6/10 kV, 8.7/15 kV, 12/20 kV, 18/30 kV, 26/35 kV.
Maxime Ratio intentione um7.2 kV, 12 kV, 17.5 kV, 24 kV, 36 kV, 42 kV
Numerus Cores3
ConductorAeris vel aluminium, Classis 1 vel 2, 25-400 mm²
InitiumXLPE (polyethylene crucis coniunctum)
Insulatio Temperaturecontinui 90°C; 250°C brevis circuitus (max. 5 s).
ArmorFilum chalybeum galvanizatum, pulchrum vel crassum, stratum anti-corrosionis ad libitum
OversheathPVC, PE vel LSZH; nigrum, rubrum, vel ut certa '
Operating temperatus-40°C ad +90°C conductor
Radius tendentes≥12 diametrum exteriorem (staticum); ≥20 diametri exterioris (instructio)
InstallationSepultura directa, ductus, fossa, cuniculum, scapi verticalis, pons
stipareFerro vel tympanum ligneum; consuetudo tympanum longitudinis available

Typical applications

  • Medium voltage three-phase distribution networks

  • Urbanus et industrialis subterraneae potestatis lineas

  • Pastores et rami circuli direct-sepulti

  • Cuniculum, scapi, et funis pontis

  • Meum et praedae potentia copia

  • Connexiones inter switchgear, transformatores, et cippis fune terminationis

Informationes iussis

Accipere accurate sententiam, quaeso, provide:

  1. Rated voltage U/U*

  2. Conductor materiae et sectionis crucis

  3. Numerus chororum: 3

  4. Materia Oversica: PVC, PE, vel LSZH .

  5. Armorum genus: denique vel ferro crasso galvanized filum

  6. Requiritur vexillum: IEC 60502-2, GB/T 12706.2, BS 6622, vel aliis

  7. Totum longitudinis praetulit tympanum longitudinis

  8. Installation environment and any special requirements


1.8 / III (3.6) KV, xlpe insulatas tape armis PVC pusillae potestatem funem

Single-Core, CU / xlpe / ATA / PVC aut al / XLX / ATA / PVC (Tabula XVII)

Conductor

Nominal

Regio

INOLENTIA

Proxime. PRAETORIUM

Crassities

Armis mole mole

Exterior

Vagina

Crassities

Proxime. DIGNUS

Proxime. Pondus cable

Vexillum

Longitudo per

Tympanum

Aes

Aluminium

mm²

mm

mm

mm

mm

mm

kg / km

m

10

2.0

1.2

0.5

1.8

18

390

330

500

16

2.0

1.2

0.5

1.8

19

460

360

500

25

2.0

1.2

0.5

1.8

20

580

420

500

35

2.0

1.2

0.5

1.8

21

700

480

500

50

2.0

1.2

0.5

1.8

23

840

550

500

70

2.0

1.2

0.5

1.8

24

1,080

650

500

95

2.0

1.2

0.5

1.8

26

1,360

770

500

120

2.0

1.2

0.5

1.8

28

1,620

880

500

150

2.0

1.2

0.5

1.8

29

1,920

990

500

185

2.0

1.2

0.5

1.9

31

2,300

1,150

500

240

2.0

1.2

0.5

1.9

33

2,890

1,380

500

300

2.0

1.2

0.5

2.0

36

3,510

1,610

500

400

2.0

1.2

0.5

2.1

37

4,380

1,950

500

d









630

2.4

1.3

0.5

2.4

47

7.000

2,970

500

Tres-core, cu / xlpe / Sta / PVC aut al / XLIV / STA / PVC (Table XVIII)

Conductor

Nominal

Regio

SINTULATIO

Proxime. PRAETORIUM

Crassities

Armis mole mole

Exterior

Vagina

Crassities

Proxime. DIGNUS

Proxime. Pondus cable

Vexillum

Longitudo per

Tympanum

Aes

Aluminium

mm²

mm

mm

mm

mm

mm

kg / km

m

10

2.0

1.2

0.5

1.8

28

910

720

500

16

2.0

1.2

0.5

1.9

29

1,120

820

500

25

2.0

1.2

0.5

1.9

32

1,480

1,000

500

35

2.0

1.2

0.5

2.0

35

1,840

1,170

500

50

2.0

1.2

0.5

2.1

38

1,300

1,410

500

70

2.0

1.2

0.5

2.2

43

3,390

2,100

500

95

2.0

1.2

0.5

2.3

46

4,330

2,530

500

120

2.0

1.3

0.5

2.4

50

5,180

2,910

500

150

2.0

1.4

0.5

2.6

54

6,180

3,370

500

185

2.0

1.4

0.5

2.7

57

7,120

3,920

500

240

2.0

1.5

0.5

2.8

63

9.350

4,750

400

300

2.0

1.6

0.5

3.0

68

11.340

5,550

300

400

2.0

1.8

0.5

3.3

76

14.220

6.830

300

500

2.2

1.9

0.5

3.5

84

17,850

8,380

250
