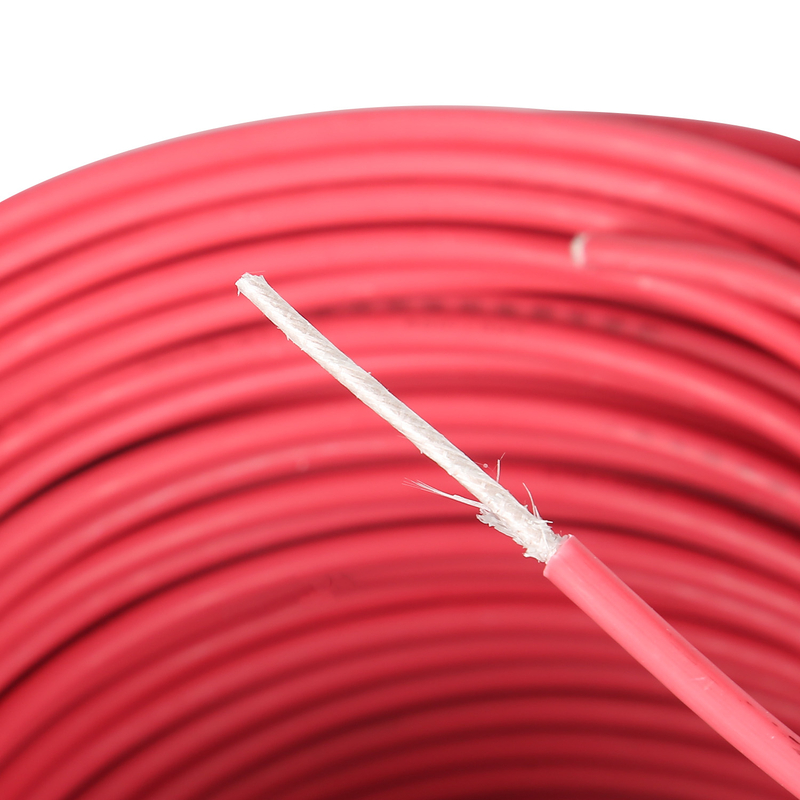

Code: Thw
Standard: Ul83
Construction: I-solidum aut subductis aeris conductor
II-PVC Nulla
Application: nam protected installation in apparatu et lucendi conveniens etiam pro installation in Condut in et sub emplastrum
Technical data: max.operating temperatus LXXV ℃
Nominal Crucis sectioni |
Conductor |
SINTULATIO |
DIGNUS |
Proxime totalis pondus |
Conductor DC Ad XX ℃ resistentia |
|
mm² |
Constructio |
mm |
mm |
kg / km |
Ω / km |
|
XIV AWG |
1 |
1.63 |
0.76 |
3.21 |
3.97 |
8.45 |
XII AWG |
1 |
2.05 |
0.76 |
3.63 |
4.39 |
5.31 |
X AWG |
1 |
2.588 |
0.76 |
4.17 |
4.93 |
3.34 |
VIII AWG |
1 |
3.264 |
1.14 |
5.6 |
6.74 |
2.1 |
VI AWG |
1 |
4.115 |
1.52 |
7.22 |
8.74 |
1.32 |
XIV AWG |
7 |
0.617 |
0.76 |
3.43 |
4.19 |
8.62 |
XII AWG |
7 |
0.773 |
0.76 |
3.9 |
4.66 |
5.43 |
X AWG |
7 |
0.983 |
0.76 |
4.53 |
5.29 |
3.41 |
VIII AWG |
7 |
1.237 |
1.14 |
6.05 |
7.19 |
2.14 |
6awg |
7 |
1.537 |
1.52 |
7.71 |
9.23 |
1.35 |
IV AWG |
7 |
1.963 |
1.52 |
8.99 |
10.51 |
0.848 |
II AWG |
7 |
2.473 |
1.52 |
10.52 |
12.04 |
0.534 |
I AWG |
19 |
1.686 |
2.03 |
12.55 |
14.58 |
0.423 |
1/0 AWG |
19 |
1.89 |
2.03 |
13.57 |
15.6 |
0.335 |
2/0 AWG |
19 |
2.124 |
2.03 |
14.74 |
16.77 |
0.266 |
3/0 AWG |
19 |
2.388 |
2.03 |
16.06 |
18.09 |
0.211 |
4/0 AWG |
37 |
1.916 |
2.03 |
17.53 |
19.56 |
0.167 |
CCL kcmil |
37 |
2.085 |
2.41 |
19.48 |
21.89 |
0.142 |
CCC Kemil |
37 |
2.286 |
2.41 |
20.88 |
23.29 |
0.118 |
CCCL kcmil |
37 |
2.471 |
2.41 |
22.18 |
24.59 |
0.101 |
CD kcmil |
37 |
2.641 |
2.41 |
23.37 |
25.78 |
0.0885 |
D kcmil |
61 |
2.294 |
2.41 |
25.53 |
27.94 |
0.0709 |
DC kcmil |
61 |
2.52 |
2.79 |
28.32 |
31.11 |
0.059 |
DCC Kemil |
61 |
2.721 |
2.79 |
30.13 |
32.92 |
0.0506 |
DCCL Kemil |
61 |
2.817 |
2.79 |
30.99 |
33.78 |
0.0472 |
DCCC Kemil |
61 |
2.907 |
2.79 |
31.8 |
34.59 |
0.0443 |
CM Kemil |
61 |
3.088 |
2.79 |
33.43 |
36.22 |
0.0393 |
M kcmil |
61 |
3.251 |
2.79 |
34.9 |
37.69 |
0.0354 |
