Metallum-Oxide Surge Arresterae ad OverVoltage Donec

5 0 Recensiones

quantitas;
Availability:





Inquire Addere ad cartallum

Product Description

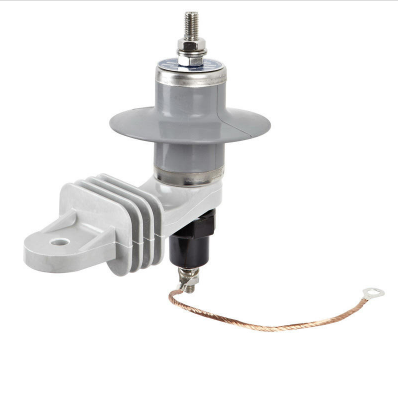

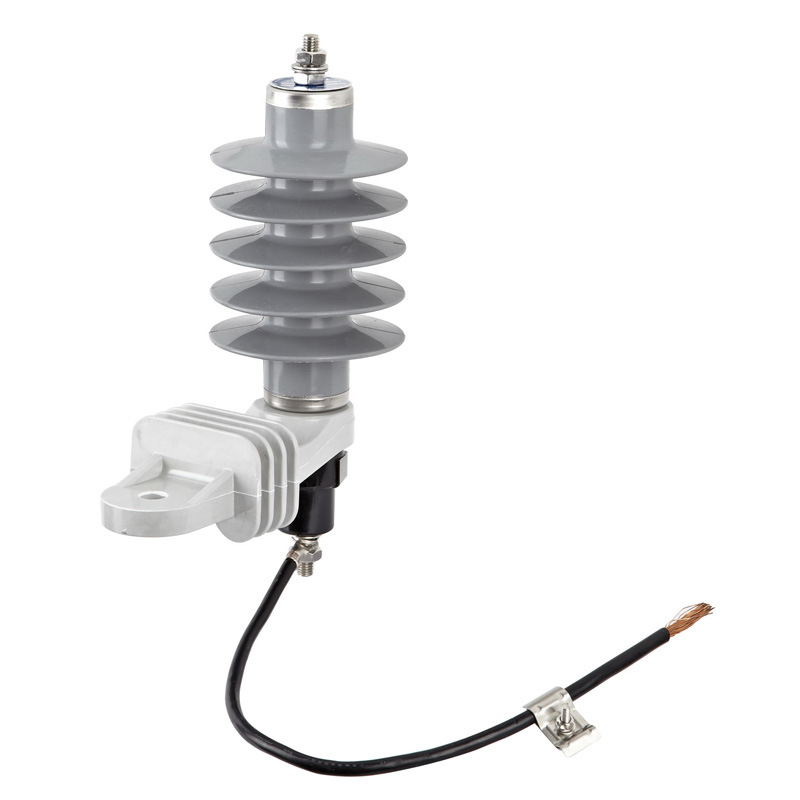

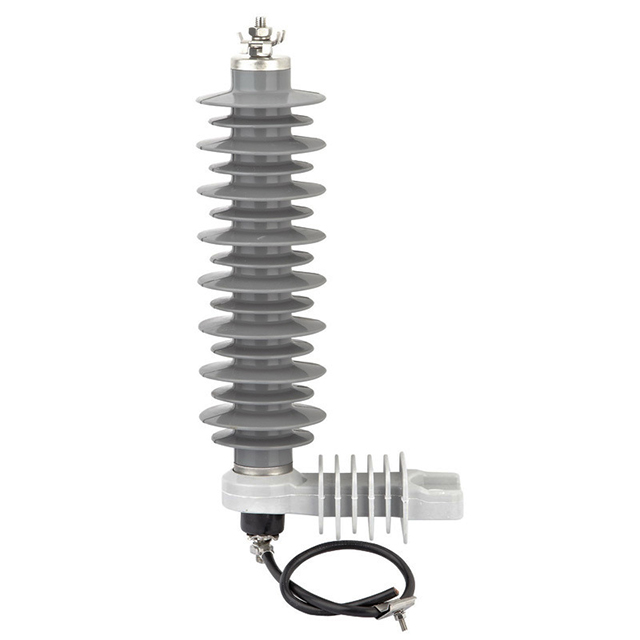

12kV Metal Oxide Surge Arrester - cadmiae cadmiae ignis Arrester pro Overvoltage Praesidium

Product Overview

In 12kV Metal Oxide Surge Arrester est summus effectus fulguris tutelae fabrica cum superiori tutela persecutio, leve pondus, pollutio resistentia, et effectus stabilis.

Egregiis utitur not linearibus volt ampere notis oxydi zinci (ZnO). Sub normali intentione laborantis, vena per aestum comprehensor fluit valde parva. Cum overvoltage incidit, resistentia acriter cadit, energiae faciendae ad tutelam efficacem arcendam.

Dissimiles traditum fulgurum comprehensores, hoc oxydatum metallum assurgat comprehensor non habet missionem - solum in notis non linearibus spodi zinci ad missionem et intermissionem nititur.

Surge Arrester Series - General Specifications

Parameter	Precium
Voltage Ratings	0,22 kv - 500 kv (murrina habitationi) / 0.22 kv - 220 kv (compositum habitationi)
Applicatio	Tutela potentiae systemata transmissionis et distributionis ex overvoltage (fulmen ferit, commutationes fluctuat)

Key features

Pluma	Descriptio
habitationi Options	Silicone polymer habitationi (compositum) vel fictilem habitationi praesto
Securus instruitur & Sustentationem	Leve consilium simplificat tractantem institutionem
Praeclara signandi Capability	Certa operatio in ambitibus duris praestat
Consectetur Praesidium & Reliability	Non missio hiatus, responsio ieiunium, effusio energiae altae

Specificationes technicae (12kV Classis)

Parameter	Precium
Rated voltage	12 kV
Technology	cadmiae cadmiae (ZnO) varistor - gapless
Habitationi materiales	Murrina vel silicone Flexilis (polymer)
Nominal missionem current	5 KA/10 KA (sicut per vexillum)
Princeps current impetus sustinere	65 KA/100 kA (4/10 µs)
Residua intentione	Ut per IEC 60099-4
ADMODO	Genus pollutio dependens
Signa	IEC 60099-4, IEEE C62.11, GB/T 11032

Applications

Sector	Application
Virtus Transmissio Linearum	Overvoltage praesidium 12kV supra lineas
Distributio Networks	Substantiae, transformers, switchgear
Power Industrial Systems	Officinarum, fodinae, refineries
Renewable Energy	Solaris praedia, venti turbines
Electrification ferriviaria	Tractio systemata potentia

Quid elige hoc 12kV Surge Arrester?

Beneficium	Description
Gapless design	Velocius responsio, nulla scintilla gap deficiendi periculum
Princeps industria effusio	ZnO varistor cum excellenti fluctu tractandi facultatem
Liberum sustentationem	Nulla periodica muneris requiratur
Tempestas repugnans	Apta litoralis, desertis, inquinatis ambitibus
IEC certified	Obsequium IEC 60099-4

Operatio

I. Ambiens Air Temperature: -40 ℃ ~ + XL ℃;

II. Altitude: <2000M =;

III. Frequency: 48hz ~ 62hz;

IV. Power frequency voltage applicantur inter terminals de surge arresster non excedat continua operating voltage de surge arrerter;

V. Minus quam VIII gradu motus intensionem;

VI. Max. Ventus celeritas est 35M / s.

Pelagus techicae parametri

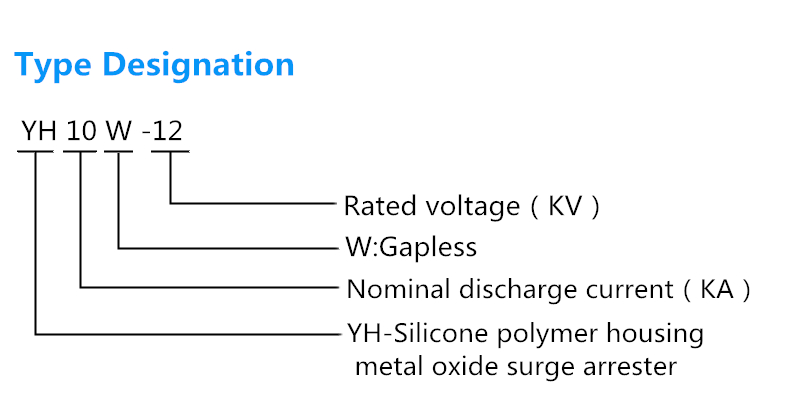

I. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (5Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-5W-VI	6	5.1	18		320	150	65
YH-5w-IX	9	7.65	27		430	150	65
YH-5W-XII	12	10.2	36		430	150	65
YH-5W-XV	15	12.75	45		530	150	65
YH-5W-XVIII	18	15.3	54		530	150	65
YH-5w-XXI	21	16.8	63		640	150	65
YH-5W-XXIV	24	19.2	72		640	150	65
YH-5w-XXVII	27	21.6	81		740	150	65
YH-5W-XXX	30	24	90		890	150	65
YH-5W-XXXIII	33	26.4	99		890	150	65
YH-5W-XXXVI	36	28.8	108		1115	150	65

II. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (10Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-10W-VI	6	5.1	18	1	320	250	100
YH-10W-IX	9	7.65	27	1	430	250	100
YH-10W-XII	12	10.2	36	1	430	250	100
YH-10W-XV	15	12.75	45	1	530	250	100
YH-10W-XVIII	18	15.3	54	1	530	250	100
YH-10W-XXI	21	16.8	63	1	640	250	100
YH-10W, XXIV	24	19.2	72	1	740	250	100
YH-10W-XXVII	27	21.6	81	1	740	250	100
YH-10W-XXX	30	24	90	1	890	250	100
YH-10W-XXXIII	33	26.4	99	1	890	250	100
YH-10W-XXXVI	36	28.8	108	1	1115	250	100
YH-10W-XLII	42	33.6	126	2	1260	400	100
YH-10W-XLVIII	48	39	139	2	1260	400	100
YH-10W-LIV	54	42	160	2	1260	400	100
YH-10W-LX	60	48	178	2	1465	400	100
YH-10W-LXVI	66	52.8	196	2	1465	400	100
YH-10W-LXXII	72	57	214	2	2255	400	100
YH-10W-LXXXIV	84	67.2	244	2	2255	400	100
YH-10W-XC	90	72.5	249	2	2255	400	100
YH-10W-XCVI	96	75	265	3	3555	800	100
YH-10W CVIII	108	84	281	3	3555	800	100
YH-10W-CXX	120	96	300	3	4153	800	100
YH-10W-CL	150	120	416	3	5040	800	100
YH-10W-CC	200	156	520	3	7110	800	100

III. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser pro ac Ratio (20KA series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-20W-CVIII	108	84	281	3	3555	800	100
YH-20W-CXX	120	96	300	3	4153	800	100
YH-20W-CL	150	120	416	3	5040	800	100
YH-20W-CC	200	156	520	3	7110	800	100

IV. Metal Oxide Porcelain habitationi (Gapless) Type Surge Arresser AC Ratio (5Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y5W-VI	6	5.1	18		280	150	65
Y5W-IX	9	7.65	27		320	150	65
Y5W-XII	12	10.2	36		320	150	65
Y5W, XV	15	12.75	45		450	150	65
Y5W-XVIII	18	15.3	54		450	150	65
Y5W-XXI	21	16.8	63		450	150	65
Y5W, XXIV	24	19.2	72		510	150	65
Y5W, XXVII	27	21.6	81		510	150	65
Y5W-XXX	30	24	90		890	150	65
Y5W-XXXIII	33	26.4	99		890	150	65
Y5W-XXXVI	36	28.8	108		890	150	65

V. Black Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser pro ac Ratio (10Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y10w-VI	6	5.1	18	1	280	250	100
Y10w-IX	9	7.65	27	1	320	250	100
Y10W-XII	12	10.2	36	1	320	250	100
Y10w, XV	15	12.75	45	1	450	250	100
Y10w-XVIII	18	15.3	54	1	450	250	100
Y10w-XXI	21	16.8	63	1	450	250	100
Y10W, XXIV	24	19.2	72	1	510	250	100
Y10w, XXVII	27	21.6	81	1	510	250	100
Y10w-XXX	30	24	90	1	890	250	100
Y10W-XXXIII	33	26.4	99	1	890	250	100
Y10W-XXXVI	36	28.8	108	1	890	250	100
Y10w-XLII	42	33.6	126	2	1256	400	100
Y10w-XLVIII	48	39	139	2	1256	400	100
Y10w-LIV	54	42	160	2	1256	400	100
Y10w-LX	60	48	178	2	1440	400	100
Y10w, LXVI	66	52.8	196	2	1440	400	100
Y10W-LXXII	72	57	214	2	1440	400	100
Y10W-LXXXIV	84	67.2	244	2	2200	400	100
Y10W-XC	90	72.5	249	2	2200	400	100
Y10W, XCVI	96	75	265	3	3350	800	100
Y10w-CVIII	108	84	281	3	3350	800	100
Y10W-CXX	120	96	300	3	3948	800	100
Y10w, CL	150	120	416	3	4400	800	100
Y10w, CC	200	156	520	3	6700	800	100

VI. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (20KA Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y20w, CVIII	108	84	281	3	3555	800	100
Y20w-CXX	120	96	300	3	4106	800	100
Y20w, CL	150	120	416	3	4400	800	100
Y20w, CC	200	156	520	3	6700	800	100
Y20w, CDXLIV	444	324	1106	4	17052	2000	100

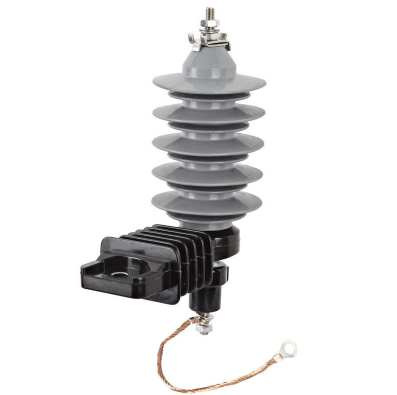

Polymeric Black Metal Oxide Arresser in Electrical Equipment

Zinc oxide surge arrester est a fulgur praesidio fabrica cum superior praesidium perficientur, lux pondere, pollutio resistentia et firmum perficientur. Eam maxime utitur bonum non-linearibus volt-ampere characteres de cadmiae cadmiae ad current fluit per a surge Arresser ad normalis operantes voltage valde parvum (microamp vel Milliampere campester); Cumque in overvoltage actus, resistentia guttae acriter, ad instantiam in overvoltage navitas ad consequi effectum tutela. Differentia inter huiusmodi fulgur arrester et traditional fulgur Arressister est quod non habet defluxiones gap et utitur non-linearibus characteres cadmiae cadmiae et confractus.

Surge Arrester Series

Generativus

I. Rating: 0.22 ~ 500KV (Porcelain), 0.22 ~ 220kv (Composita)

II. Application: nam tutela potentia tradenda & distribution system de super-voltage.

III. Features:

I) Silicone Polymer habitationi composita metallum oxide surge arresster et porcellana habitationi metallum oxide surge areres es available.

II) Securus installation et sustentationem.

III) Boni signa facultatem ut certa operatio.

IV) tutela et reliability de surge arrester fuisse valde auctus.

Operatio

I. Ambiens Air Temperature: -40 ℃ ~ + XL ℃;

II. Altitude: <2000M =;

III. Frequency: 48hz ~ 62hz;

IV. Power frequency voltage applicantur inter terminals de surge arresster non excedat continua operating voltage de surge arrerter;

V. Minus quam VIII gradu motus intensionem;

VI. Max. Ventus celeritas est 35M / s.

Pelagus techicae parametri

I. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (5Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-5W-VI	6	5.1	18		320	150	65
YH-5w-IX	9	7.65	27		430	150	65
YH-5W-XII	12	10.2	36		430	150	65
YH-5W-XV	15	12.75	45		530	150	65
YH-5W-XVIII	18	15.3	54		530	150	65
YH-5w-XXI	21	16.8	63		640	150	65
YH-5W-XXIV	24	19.2	72		640	150	65
YH-5w-XXVII	27	21.6	81		740	150	65
YH-5W-XXX	30	24	90		890	150	65
YH-5W-XXXIII	33	26.4	99		890	150	65
YH-5W-XXXVI	36	28.8	108		1115	150	65

II. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (10Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-10W-VI	6	5.1	18	1	320	250	100
YH-10W-IX	9	7.65	27	1	430	250	100
YH-10W-XII	12	10.2	36	1	430	250	100
YH-10W-XV	15	12.75	45	1	530	250	100
YH-10W-XVIII	18	15.3	54	1	530	250	100
YH-10W-XXI	21	16.8	63	1	640	250	100
YH-10W, XXIV	24	19.2	72	1	740	250	100
YH-10W-XXVII	27	21.6	81	1	740	250	100
YH-10W-XXX	30	24	90	1	890	250	100
YH-10W-XXXIII	33	26.4	99	1	890	250	100
YH-10W-XXXVI	36	28.8	108	1	1115	250	100
YH-10W-XLII	42	33.6	126	2	1260	400	100
YH-10W-XLVIII	48	39	139	2	1260	400	100
YH-10W-LIV	54	42	160	2	1260	400	100
YH-10W-LX	60	48	178	2	1465	400	100
YH-10W-LXVI	66	52.8	196	2	1465	400	100
YH-10W-LXXII	72	57	214	2	2255	400	100
YH-10W-LXXXIV	84	67.2	244	2	2255	400	100
YH-10W-XC	90	72.5	249	2	2255	400	100
YH-10W-XCVI	96	75	265	3	3555	800	100
YH-10W CVIII	108	84	281	3	3555	800	100
YH-10W-CXX	120	96	300	3	4153	800	100
YH-10W-CL	150	120	416	3	5040	800	100
YH-10W-CC	200	156	520	3	7110	800	100

III. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser pro ac Ratio (20KA series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-20W-CVIII	108	84	281	3	3555	800	100
YH-20W-CXX	120	96	300	3	4153	800	100
YH-20W-CL	150	120	416	3	5040	800	100
YH-20W-CC	200	156	520	3	7110	800	100

IV. Metal Oxide Porcelain habitationi (Gapless) Type Surge Arresser AC Ratio (5Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y5W-VI	6	5.1	18		280	150	65
Y5W-IX	9	7.65	27		320	150	65
Y5W-XII	12	10.2	36		320	150	65
Y5W, XV	15	12.75	45		450	150	65
Y5W-XVIII	18	15.3	54		450	150	65
Y5W-XXI	21	16.8	63		450	150	65
Y5W, XXIV	24	19.2	72		510	150	65
Y5W, XXVII	27	21.6	81		510	150	65
Y5W-XXX	30	24	90		890	150	65
Y5W-XXXIII	33	26.4	99		890	150	65
Y5W-XXXVI	36	28.8	108		890	150	65

V. Black Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser pro ac Ratio (10Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y10w-VI	6	5.1	18	1	280	250	100
Y10w-IX	9	7.65	27	1	320	250	100
Y10W-XII	12	10.2	36	1	320	250	100
Y10w, XV	15	12.75	45	1	450	250	100
Y10w-XVIII	18	15.3	54	1	450	250	100
Y10w-XXI	21	16.8	63	1	450	250	100
Y10W, XXIV	24	19.2	72	1	510	250	100
Y10w, XXVII	27	21.6	81	1	510	250	100
Y10w-XXX	30	24	90	1	890	250	100
Y10W-XXXIII	33	26.4	99	1	890	250	100
Y10W-XXXVI	36	28.8	108	1	890	250	100
Y10w-XLII	42	33.6	126	2	1256	400	100
Y10w-XLVIII	48	39	139	2	1256	400	100
Y10w-LIV	54	42	160	2	1256	400	100
Y10w-LX	60	48	178	2	1440	400	100
Y10w, LXVI	66	52.8	196	2	1440	400	100
Y10W-LXXII	72	57	214	2	1440	400	100
Y10W-LXXXIV	84	67.2	244	2	2200	400	100
Y10W-XC	90	72.5	249	2	2200	400	100
Y10W, XCVI	96	75	265	3	3350	800	100
Y10w-CVIII	108	84	281	3	3350	800	100
Y10W-CXX	120	96	300	3	3948	800	100
Y10w, CL	150	120	416	3	4400	800	100
Y10w, CC	200	156	520	3	6700	800	100

VI. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (20KA Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y20w, CVIII	108	84	281	3	3555	800	100
Y20w-CXX	120	96	300	3	4106	800	100
Y20w, CL	150	120	416	3	4400	800	100
Y20w, CC	200	156	520	3	6700	800	100
Y20w, CDXLIV	444	324	1106	4	17052	2000	100

Metallum Oxide Zinc altum voltage surge arresser in caput line

Zinc oxide surge arrester est a fulgur praesidio fabrica cum superior praesidium perficientur, lux pondere, pollutio resistentia et firmum perficientur. Eam maxime utitur bonum non-linearibus volt-ampere characteres de cadmiae cadmiae ad current fluit per a surge Arresser ad normalis operantes voltage valde parvum (microamp vel Milliampere campester); Cumque in overvoltage actus, resistentia guttae acriter, ad instantiam in overvoltage navitas ad consequi effectum tutela. Differentia inter huiusmodi fulgur arrester et traditional fulgur Arressister est quod non habet defluxiones gap et utitur non-linearibus characteres cadmiae cadmiae et confractus.

Surge Arrester Series

Generativus

I. Rating: 0.22 ~ 500KV (Porcelain), 0.22 ~ 220kv (Composita)

II. Application: nam tutela potentia tradenda & distribution system de super-voltage.

III. Features:

I) Silicone Polymer habitationi composita metallum oxide surge arresster et porcellana habitationi metallum oxide surge areres es available.

II) Securus installation et sustentationem.

III) Boni signa facultatem ut certa operatio.

IV) tutela et reliability de surge arrester fuisse valde auctus.

Operatio

I. Ambiens Air Temperature: -40 ℃ ~ + XL ℃;

II. Altitude: <2000M =;

III. Frequency: 48hz ~ 62hz;

IV. Power frequency voltage applicantur inter terminals de surge arresster non excedat continua operating voltage de surge arrerter;

V. Minus quam VIII gradu motus intensionem;

VI. Max. Ventus celeritas est 35M / s.

Pelagus techicae parametri

I. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (5Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-5W-VI	6	5.1	18		320	150	65
YH-5w-IX	9	7.65	27		430	150	65
YH-5W-XII	12	10.2	36		430	150	65
YH-5W-XV	15	12.75	45		530	150	65
YH-5W-XVIII	18	15.3	54		530	150	65
YH-5w-XXI	21	16.8	63		640	150	65
YH-5W-XXIV	24	19.2	72		640	150	65
YH-5w-XXVII	27	21.6	81		740	150	65
YH-5W-XXX	30	24	90		890	150	65
YH-5W-XXXIII	33	26.4	99		890	150	65
YH-5W-XXXVI	36	28.8	108		1115	150	65

II. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (10Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-10W-VI	6	5.1	18	1	320	250	100
YH-10W-IX	9	7.65	27	1	430	250	100
YH-10W-XII	12	10.2	36	1	430	250	100
YH-10W-XV	15	12.75	45	1	530	250	100
YH-10W-XVIII	18	15.3	54	1	530	250	100
YH-10W-XXI	21	16.8	63	1	640	250	100
YH-10W, XXIV	24	19.2	72	1	740	250	100
YH-10W-XXVII	27	21.6	81	1	740	250	100
YH-10W-XXX	30	24	90	1	890	250	100
YH-10W-XXXIII	33	26.4	99	1	890	250	100
YH-10W-XXXVI	36	28.8	108	1	1115	250	100
YH-10W-XLII	42	33.6	126	2	1260	400	100
YH-10W-XLVIII	48	39	139	2	1260	400	100
YH-10W-LIV	54	42	160	2	1260	400	100
YH-10W-LX	60	48	178	2	1465	400	100
YH-10W-LXVI	66	52.8	196	2	1465	400	100
YH-10W-LXXII	72	57	214	2	2255	400	100
YH-10W-LXXXIV	84	67.2	244	2	2255	400	100
YH-10W-XC	90	72.5	249	2	2255	400	100
YH-10W-XCVI	96	75	265	3	3555	800	100
YH-10W CVIII	108	84	281	3	3555	800	100
YH-10W-CXX	120	96	300	3	4153	800	100
YH-10W-CL	150	120	416	3	5040	800	100
YH-10W-CC	200	156	520	3	7110	800	100

III. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser pro ac Ratio (20KA series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-20W-CVIII	108	84	281	3	3555	800	100
YH-20W-CXX	120	96	300	3	4153	800	100
YH-20W-CL	150	120	416	3	5040	800	100
YH-20W-CC	200	156	520	3	7110	800	100

IV. Metal Oxide Porcelain habitationi (Gapless) Type Surge Arresser AC Ratio (5Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y5W-VI	6	5.1	18		280	150	65
Y5W-IX	9	7.65	27		320	150	65
Y5W-XII	12	10.2	36		320	150	65
Y5W, XV	15	12.75	45		450	150	65
Y5W-XVIII	18	15.3	54		450	150	65
Y5W-XXI	21	16.8	63		450	150	65
Y5W, XXIV	24	19.2	72		510	150	65
Y5W, XXVII	27	21.6	81		510	150	65
Y5W-XXX	30	24	90		890	150	65
Y5W-XXXIII	33	26.4	99		890	150	65
Y5W-XXXVI	36	28.8	108		890	150	65

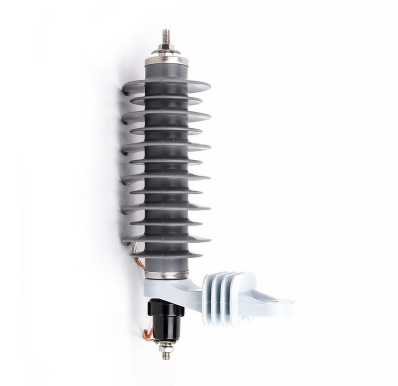

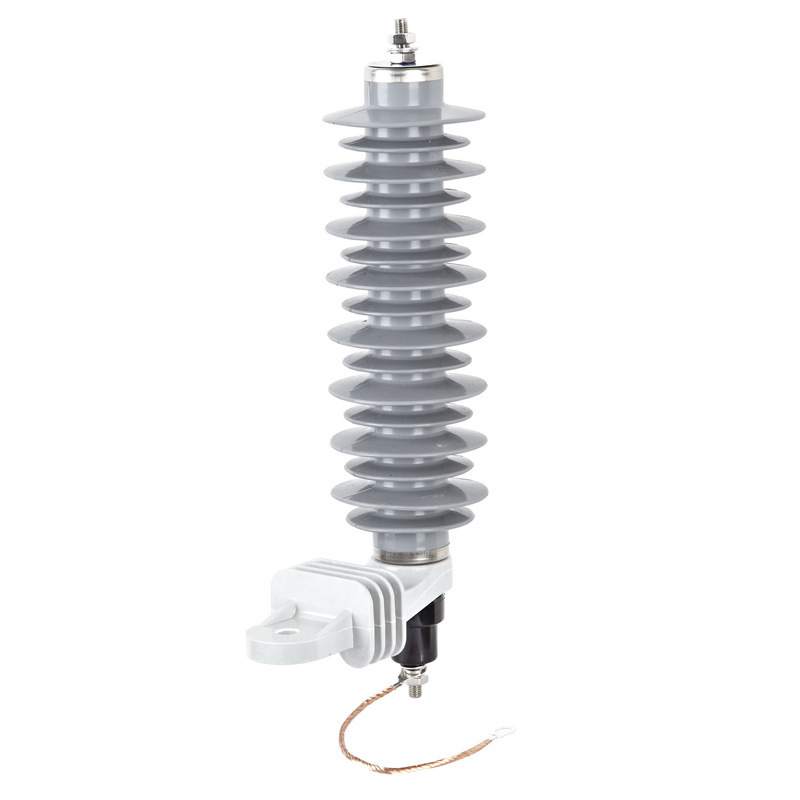

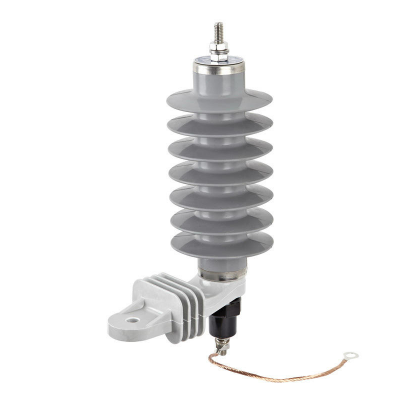

36KV High Voltage Surge Arresterae ad distribution linea

Zinc oxide surge arrester est a fulgur praesidio fabrica cum superior praesidium perficientur, lux pondere, pollutio resistentia et firmum perficientur. Eam maxime utitur bonum non-linearibus volt-ampere characteres de cadmiae cadmiae ad current fluit per a surge Arresser ad normalis operantes voltage valde parvum (microamp vel Milliampere campester); Cumque in overvoltage actus, resistentia guttae acriter, ad instantiam in overvoltage navitas ad consequi effectum tutela. Differentia inter huiusmodi fulgur arrester et traditional fulgur Arressister est quod non habet defluxiones gap et utitur non-linearibus characteres cadmiae cadmiae et confractus.

Surge Arrester Series

Generativus

I. Rating: 0.22 ~ 500KV (Porcelain), 0.22 ~ 220kv (Composita)

II. Application: nam tutela potentia tradenda & distribution system de super-voltage.

III. Features:

I) Silicone Polymer habitationi composita metallum oxide surge arresster et porcellana habitationi metallum oxide surge areres es available.

II) Securus installation et sustentationem.

III) Boni signa facultatem ut certa operatio.

IV) tutela et reliability de surge arrester fuisse valde auctus.

Operatio

I. Ambiens Air Temperature: -40 ℃ ~ + XL ℃;

II. Altitude: <2000M =;

III. Frequency: 48hz ~ 62hz;

IV. Power frequency voltage applicantur inter terminals de surge arresster non excedat continua operating voltage de surge arrerter;

V. Minus quam VIII gradu motus intensionem;

VI. Max. Ventus celeritas est 35M / s.

Pelagus techicae parametri

I. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (5Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-5W-VI	6	5.1	18		320	150	65
YH-5w-IX	9	7.65	27		430	150	65
YH-5W-XII	12	10.2	36		430	150	65
YH-5W-XV	15	12.75	45		530	150	65
YH-5W-XVIII	18	15.3	54		530	150	65
YH-5w-XXI	21	16.8	63		640	150	65
YH-5W-XXIV	24	19.2	72		640	150	65
YH-5w-XXVII	27	21.6	81		740	150	65
YH-5W-XXX	30	24	90		890	150	65
YH-5W-XXXIII	33	26.4	99		890	150	65
YH-5W-XXXVI	36	28.8	108		1115	150	65

II. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (10Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-10W-VI	6	5.1	18	1	320	250	100
YH-10W-IX	9	7.65	27	1	430	250	100
YH-10W-XII	12	10.2	36	1	430	250	100
YH-10W-XV	15	12.75	45	1	530	250	100
YH-10W-XVIII	18	15.3	54	1	530	250	100
YH-10W-XXI	21	16.8	63	1	640	250	100
YH-10W, XXIV	24	19.2	72	1	740	250	100
YH-10W-XXVII	27	21.6	81	1	740	250	100
YH-10W-XXX	30	24	90	1	890	250	100
YH-10W-XXXIII	33	26.4	99	1	890	250	100
YH-10W-XXXVI	36	28.8	108	1	1115	250	100
YH-10W-XLII	42	33.6	126	2	1260	400	100
YH-10W-XLVIII	48	39	139	2	1260	400	100
YH-10W-LIV	54	42	160	2	1260	400	100
YH-10W-LX	60	48	178	2	1465	400	100
YH-10W-LXVI	66	52.8	196	2	1465	400	100
YH-10W-LXXII	72	57	214	2	2255	400	100
YH-10W-LXXXIV	84	67.2	244	2	2255	400	100
YH-10W-XC	90	72.5	249	2	2255	400	100
YH-10W-XCVI	96	75	265	3	3555	800	100
YH-10W CVIII	108	84	281	3	3555	800	100
YH-10W-CXX	120	96	300	3	4153	800	100
YH-10W-CL	150	120	416	3	5040	800	100
YH-10W-CC	200	156	520	3	7110	800	100

III. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser pro ac Ratio (20KA series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-20W-CVIII	108	84	281	3	3555	800	100
YH-20W-CXX	120	96	300	3	4153	800	100
YH-20W-CL	150	120	416	3	5040	800	100
YH-20W-CC	200	156	520	3	7110	800	100

IV. Metal Oxide Porcelain habitationi (Gapless) Type Surge Arresser AC Ratio (5Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y5W-VI	6	5.1	18		280	150	65
Y5W-IX	9	7.65	27		320	150	65
Y5W-XII	12	10.2	36		320	150	65
Y5W, XV	15	12.75	45		450	150	65
Y5W-XVIII	18	15.3	54		450	150	65
Y5W-XXI	21	16.8	63		450	150	65
Y5W, XXIV	24	19.2	72		510	150	65
Y5W, XXVII	27	21.6	81		510	150	65
Y5W-XXX	30	24	90		890	150	65
Y5W-XXXIII	33	26.4	99		890	150	65
Y5W-XXXVI	36	28.8	108		890	150	65

V. Black Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser pro ac Ratio (10Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y10w-VI	6	5.1	18	1	280	250	100
Y10w-IX	9	7.65	27	1	320	250	100
Y10W-XII	12	10.2	36	1	320	250	100
Y10w, XV	15	12.75	45	1	450	250	100
Y10w-XVIII	18	15.3	54	1	450	250	100
Y10w-XXI	21	16.8	63	1	450	250	100
Y10W, XXIV	24	19.2	72	1	510	250	100
Y10w, XXVII	27	21.6	81	1	510	250	100
Y10w-XXX	30	24	90	1	890	250	100
Y10W-XXXIII	33	26.4	99	1	890	250	100
Y10W-XXXVI	36	28.8	108	1	890	250	100
Y10w-XLII	42	33.6	126	2	1256	400	100
Y10w-XLVIII	48	39	139	2	1256	400	100
Y10w-LIV	54	42	160	2	1256	400	100
Y10w-LX	60	48	178	2	1440	400	100
Y10w, LXVI	66	52.8	196	2	1440	400	100
Y10W-LXXII	72	57	214	2	1440	400	100
Y10W-LXXXIV	84	67.2	244	2	2200	400	100
Y10W-XC	90	72.5	249	2	2200	400	100
Y10W, XCVI	96	75	265	3	3350	800	100
Y10w-CVIII	108	84	281	3	3350	800	100
Y10W-CXX	120	96	300	3	3948	800	100
Y10w, CL	150	120	416	3	4400	800	100
Y10w, CC	200	156	520	3	6700	800	100

VI. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (20KA Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y20w, CVIII	108	84	281	3	3555	800	100
Y20w-CXX	120	96	300	3	4106	800	100
Y20w, CL	150	120	416	3	4400	800	100
Y20w, CC	200	156	520	3	6700	800	100
Y20w, CDXLIV	444	324	1106	4	17052	2000	100

priorem:

deinde:

*quin Code

Metallum-Oxide Surge Arresterae ad OverVoltage Donec

12kV Metal Oxide Surge Arrester - cadmiae cadmiae ignis Arrester pro Overvoltage Praesidium

Product Overview

Surge Arrester Series - General Specifications

Key features

Specificationes technicae (12kV Classis)

Applications

Quid elige hoc 12kV Surge Arrester?

De nobis

PRODUCTUS

CONTACT US
