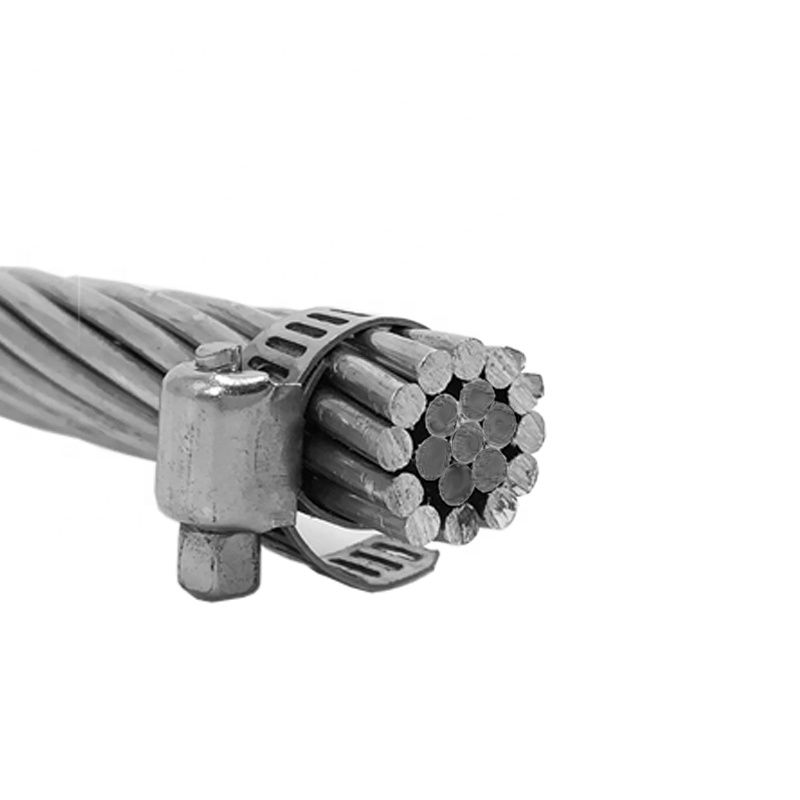

Laudate (XLVIII) CCIV obsequium ferro Reinforced Aluminium Conductors ACSR pro diuturnitatem et efficientiam

Laudate (XLVIII) CCIV obsequium ferro Reinforced Aluminium Conductors ACSR pro diuturnitatem et efficientiam

5 0 Recensiones

quantitas;
Availability:





Inquire Addere ad cartallum

Steel Reinforced Aluminium Conductors Achescr

Overview:

Achis (Aluminium Conductor ferro Reinforced) est late usus caput virtutis tradenda conductor composito ex centralis core de ferro firnandas cincta per strandas de aluminium firma. Correptius core robuste ferro core meticulously disposito pati extremum mechanica passiones, ex ululatu ventis ad gravibus glacies onerat, dum circumdatos in circuitu altus-puritate aluminium firma curare bene electrica conductivity. Hoc Synergy fortitudo et efficientiam facit ACSR ire-ad arbitrium ad utilitatem turmas worldwide, enabling reliable electricity traditio trans ingens distantiis et provocantes terrains. Utrum Montes spanning, flumina, aut urbana landscapes, ACSR stat sicut in novissimis in industria infrastructure, combining cum sumptus-efficaciam ad potestatem in futurum.

Commoda:

I. Mechanica vires cum leve consilium

Achsr scriptor summus vires ferro core praebet eximia exceptionalibus tensile viribus, enabling iam palmis inter transmissionem turres (usque ad 400-600 metris in aliqua applications). Hoc reduces numerum auxilium structurae opus, demissis installation et sustentacionem costs. Quamvis sua fortitudo, aluminium exterius iacuit custodit conductor levior quam equivalent ferro-tantum funem, faciens facilius ad tractamus et explicandam.

II. Optimal electrica conductivity cum agentibus potentia traditio

High-puritatem aluminium firmina curare humilis electrica resistentia, minimizing industria damna super diu spatia. Dum non ut PROLIXUS sicut pura aeris, sumptus-perficientur ratio facit ACSR praeferenda electionis pro summus intentione tradenda lineae (typically 66kv et supra).

III. Enhanced corrosio resistentia diu-term reliability

Aluminium exterius layer naturaliter format a tutela cadmiae film, protegens conductor ex environmental degradation. Praeterea, modern ACSR variants uti galvanized aut aluminium-vesti ferro corres ad ulterius mitigare corrosio metus in umida aut maritimum environments.

IV. Sumptus-effective solution pro magna-scale potentia networks

Comparari omnibus, Aluminium (AAC) aut aeris Conductors, ACSR offert significant pretium savings in summus tensio applications. Et ferro core reduces opus ad sumptuosus aluminium dum maintaining structural integritas, faciens idealis pro ruris electriification, eget expansiones, et renewable navitas projects.

V. TRMAL stabilitatem in extrema condiciones

Sag moribus sub vario temperaturis Sag ferro auxiliis auxiliis, ne nimia demissa in aestate vel super-tensioning in hieme. Hoc ensures reliable eget operatio in climatibus cum gravibus temporis mutationes.

VI. Adaptability ad diverse environments

Achsr operatur bene in montana terrerains, maritimas, et urbana potentia grids propter suam statera roboris, pondere et corrosio resistentia. Special coatings (eggrease-infusa aut tempestas, repugnans alloys) potest amplius extende servitium vitae in dura conditionibus.

Comparatio cum aliis ductores:

Conductor type	vires	conductivity	pondus	pretium
ACSR	Princeps (ferro)	Moderatus (al)	Medium	Humilis
Aaac	Medium	Altum	Lentus	Altum
Acar (Al-Core)	Medium	Altum	Medium	Altum
Aes	Humilis	PERPREPIDUS	Gravis	PERPREPIDUS

specificatio

Technica Regio				Stranding & Filum Diameter		Proxime Altiore Dia.	Pondus			Nom. Praevaricatio Onus	Nom.dc Resistentia In XX ℃	Std. Longitudo
Nom.Alum.	Alumine.	Ferro	Summa	Alumine.	Ferro	Proxime Altiore Dia.	Alumine.	Ferro	Summa	Nom. Praevaricatio Onus	Nom.dc Resistentia In XX ℃	Std. Longitudo
mm²	mm²	mm²	mm²	mm	mm	mm	kg / km	kg / km	kg / km	Kn	Ohm / km	m. ± V%
XVI / 2.5	15.3	2.55	17.8	VI / 1.80	I / 1.80	5.4	42	20	62	5.81	1.8793	2,500
XXV / 4.0	23.8	4	27.8	VI / 2,25	I / 2.25	6.8	65	32	97	9.02	1.2028	2,000
XXXV / 6.0	34.3	5.7	40	VI / 2.70	I / 2.70	8.1	94	46	140	12.7	0.8353	2,000
XLIV / 32.0	44	31.7	75.7	XIV / 2.00	VII / 2.40	11.2	122	250	373	45.46	0.6573	2,000
L / 8,0	48.3	8	56.3	VI / 3,20	I / 3,20	9.6	132	64	196	17.18	0.5946	2,000
50/30	51.2	29.8	81	XII / 2,33	VII / 2,33	11.7	141	237	378	44.28	0.5644	2,000
70/12	69.9	11.4	81.3	XXVI / 1.85	VII / 1.44	11.7	193	91	284	26.31	0.413	2,000
95/15	94.4	15.3	109.7	XXVI / 2,15	VII / 1.67	13.6	260	123	383	35.18	0.3058	3,000
95/55	96.5	56.3	152.8	XII / 3,20	VII / 3,20	16	266	446	714	80.2	0.2992	3,000
105/75	105.7	75.5	181.5	XIV / 3,10	XIX / 2,25	17.5	292	599	899	106.69	0.2736	2,000
120/20	121.6	19.8	141.4	XXVI / 2,44	VII / 1.9	15.5	336	158	494	44.94	0.2374	2,500
120/70	122	71.3	193.3	XII / 3.60	VII / 3.60	18	337	564	904	98.16	0.2364	2,500
125/30	127.9	29.8	157.7	XXX / 2,33	VII / 2,33	16.3	353	238	590	57.86	0.2259	2,500
150/25	148.9	24.2	173.1	XXVI / 2.70	VII / 2.10	17.1	411	194	604	54.37	0.1939	2,000
170/40	171.8	40.1	211.9	XXX / 2.70	VII / 2.70	18.9	475	319	794	77.01	0.1682	2,000
185/30	183.8	29.8	213.6	XXVI / 3.00	VII / 2,33	19	507	239	744	66.28	0.1571	2,500
210/35	209.1	34.1	243.2	XXVI / 3,20	VII / 2.49	20.3	577	273	848	74.94	0.138	2,000
210/50	212.1	49.5	261.6	XXX / 3.00	VII / 3.00	21	587	394	979	92.25	0.1363	2,500
230/30	230.9	29.8	260.7	XXIV / 3.50	VII / 2,33	21	638	239	874	73.09	0.1249	3,500
240/40	243	39.5	282.5	XXVI / 3.45	VII / 2.68	21.9	671	316	985	86.46	0.1188	3,500
265/35	263.7	34.1	297.8	XXIV / 3.74	VII / 2.49	22.4	728	274	998	82.94	0.1094	3,000
300/50	304.3	49.5	353.7	XXVI / 3.86	VII / 3.00	24.5	840	396	1,233	105.09	0.0949	3,000
300/40	304.6	39.5	344.1	LIV / 2.68	VII / 2.68	24.1	843	317	1,155	99.3	0.0949	2,000
340/30	339.3	29.8	369.1	XLVIII / 3.00	VII / 2,33	25	938	242	1,174	92.56	0.0851	2,500
380/50	382	49.5	431.5	LIV / 3.00	VII / 3.00	27	1,056	397	1,448	120.91	0.0757	3,000
385/35	386	34.1	420.1	XLVIII / 3.20	VII / 2.49	26.7	1,067	277	1,336	104.31	0.0748	2,000
435/55	434.3	56.3	490.6	LIV / 3,20	VII / 3,20	28.8	1,203	450	1,647	136.27	0.0666	2,000
450/40	448.7	39.5	488.2	XLVIII / 3.45	VII / 2.68	28.7	1,241	320	1,553	120.19	0.0644	2,000
490/65	490.3	63.6	553.9	LIV / 3.40	VII / 3.40	30.6	1,356	510	1,850	152.85	0.059	2,000
485/35	494.1	34.1	528.2	XLV / 3.74	VII / 2.49	29.9	1,363	283	1,636	120.31	0.0584	2,000
510/45	510.2	45.3	555.5	XLVIII / 3.68	VII / 2.87	30.7	1,413	365	1,770	134.33	0.0566	2,000
550/70	550	71.3	621.3	LIV / 3.60	VII / 3.60	32.4	1,520	572	2,065	167.42	0.0526	2,000
560/50	561.7	49.5	611.2	XLVIII / 3.86	VII / 3.00	32.2	1,553	401	1,943	146.28	0.0514	2,000
570/40	565.5	39.5	610.3	XLV / 4.00	VII / 2.68	32.2	1,563	325	1,889	137.98	0.0506	2,500
632/45	632.1	45.3	677,4 764,8	XLV / 4.23 LIV / 4.00	VII / 2.87	34	1,754	364	2,183	155.52	0.0442	2,500
680/85	678.8	86	677,4 764,8	XLV / 4.23 LIV / 4.00	XIX / 2,40	36	1,868	702	2,564	209.99	0.0426	2,500

Aacsr

Product: Steel Reinformed Conductorors

Signa: Typical Allaluminumalloally NFC 34- CXXV

Drawing: Oriente Energy Electrical Engineering

Designation	Ferro Regio	Al Mixtura Regio	Tot.	Cu -ent Cu Regio	Numerus				Proxime. Altiore Dia.		Nom. Praevaricatio Onus	Nom.dc Resistentia In XX ℃	Std. Pondus	Std. Longitudo
	Ferro Regio	Al Mixtura Regio	Tot.	Cu -ent Cu Regio	Ferro		Alloy Al		Core ferro	COM Lete Cond.	Nom. Praevaricatio Onus	Nom.dc Resistentia In XX ℃
	mm²	mm²	mm²	mm²	No.		No.		mm	mm	Dan	Ohm / km	kg / km	M ± V%
Phlox 37-7	9.42	28.27	37.69	15.4	3	2.00	9	2.00	4.3	8.3	2,360	1.17	155	4,000
Phlox 59-7	21.99	37.7	59.69	20.6	7	2.00	12	2.00	6	10	4,560	0.88	276	4,000
Phlox 75-5	27.83	47.71	75.54	26	7	2.25	12	2.25	6.75	11.25	5,770	0.695	348	3,000
Phlox 116-2	59.69	56.55	116.24	30.9	19	2.00	18	2.00	10	14	10.815	0.58	636	3,000
147-1 Phlox	75.54	71.57	147.11	39.1	19	2.25	18	2.25	11.25	15.75	13,685	0.466	802	3,000
147-1 pastel	27.83	119.28	147.11	65.2	7	2.25	30	2.25	6.75	15.75	8,185	0.279	547	3,000
Phlox181-6	93.27	88.36	181.63	48.3	19	2.50	18	2.50	12.5	17.5	16,895	0.378	990	3,000
Pastel 181-6	34.36	147.26	181.62	80.5	7	2.50	30	2.50	7.5	17.5	10,120	0.227	675	3,000
CCXXVIII Phlox	116.99	110.83	227.82	60.5	19	2.80	18	2.80	14	19.6	21,200	0.3	1,244	2,000
CCXXVIII pastel	43.1	184.72	227.82	101	7	2.80	30	2.80	8.4	19.6	12,680	0.18	848	2,000
Phlox CCLXXXVIII	148.07	140.28	288.35	76.6	19	3.15	18	3.15	15.75	22.05	26,800	0.237	1,570	2,000
CCLXXXVIII pastel	54.55	233.8	288.35	127.7	7	3.15	30	3.15	9.45	22.05	16,050	0.142	1,074	2,000
Pastel CCXCIX	93.27	206.17	299.44	112.7	19	2.50	42	2.50	12.5	22.5	20,875	0.162	1,320	2,000
Phlox 94-1	42.12	51.95	94.07	28.4	19	1.68	15	2.10	8.4	12.8	8.035	0.642	481	4,000
Pastel412	85.95	325.72	411.67	178	19	2.40	32	3.60	12	26.4	20,830	0.103	1,593	2,500

Aaac

Product: Allaluminum Alloy Conductors

Signa: ASTM B CCCXCIX

Typical Tractus:

Codex	Regio		Magnitudine et saturacula ACSR pari diametro		No.and diametrum filis	Altiore Diameter	Pondus	Nominal Praevaricatio Onus	Vexillum Longitudo
	Nominal	Re	Magnitudine et saturacula ACSR pari diametro		No.and diametrum filis	Altiore Diameter	Pondus	Nominal Praevaricatio Onus
	MCM	mm²	AWG et McM	Al / Steel	mm	mm	kg / km	Kn	M ± V
AKRON	30.58	15.48	6	6/1	VII × 1.68	5.04	42.7	4.92	3,000
Alton	48.69	24.71	4	6/1	VII × 2,12	6.35	68	7.84	3,000
Ames	77.47	39.22	2	6/1	VII × 2.67	8.02	108	12.45	2,000
Azusa	123.3	62.38	1/0	6/1	VII × 3.37	10.11	172	18.97	2,000
Anaheim	155.4	78.65	2/0	6/1	VII × 3.78	11.35	217	23.93	3,000
PRAEMISSUS	195.7	99.22	3/0	6/1	VII × 4.25	12.75	273	30.18	2,500
Allitas	246.9	125.1	4/0	6/1	VII × 4.77	14.31	345	38.05	2,000
Butte	312.8	158.6	266.8	26/7	XIX × 3.26	16.3	437	48.76	3,000
Canton	394.5	199.9	336.4	26/7	XIX × 3.66	18.3	551	58.91	2,500
Cairo	465.4	235.8	397.5	26/7	XIX × 3.98	19.88	650	69.48	2,000
Darien	559.5	283.5	477	26/7	XIX × 4.36	21.79	781	83.52	2,000
Elginum	652.4	330.6	556.5	26/7	XIX × 4.71	23.54	911	97.42	1,500
Laevo	740.8	375.3	636	26/7	XXXVII × 3.59	25.16	1,035	108.21	3,000
Greeley	927.2	469.8	795	26/7	XXXVII × 4.02	28.14	1,295	135.47	2,500

Aaac

Product: Allaluminum Alloy Conductors

Signa: ASTM B CCCXCIX

Typical Tractus:

Regio		Stranding et filum diameter	Proxime. Altiore Diameter	Pondus	Nominal Praevaricatio Onus	Nominal DC Resistentia In XX ℃	Vexillum Longitudo
Nominal	Re	Stranding et filum diameter	Proxime. Altiore Diameter	Pondus	Nominal Praevaricatio Onus	Nominal DC Resistentia In XX ℃	Vexillum Longitudo
AWG vel MCM	mm²	mm	mm	kg / km	Kn	Ohm / km	M ± V
6	13.3	VII / 1.554	4.67	37	4.22	2.5199	3,500
4	21.15	VII / 1.961	5.89	58	6.71	1.5824	3,000
2	33.63	VII / 2.474	7.42	93	10.68	0.9942	2,500
1/0	53.48	VII / 3,119	9.36	148	16.97	0.6256	2,000
2/0	67.42	VII / 3.503	10.51	186	20.52	0.4959	3,500
3/0	85.03	VII / 3.932	11.8	234	25.86	0.3936	3,000
4/0	107.23	VII / 4.417	13.26	296	32.63	0.3119	2,000
250	126.66	XIX / 2.913	14.57	349	38.93	0.2642	2,000
300	152.1	XIX / 3,193	15.97	419	46.77	0.2199	3,000
350	177.35	XIX / 3.447	17.24	489	52.25	0.1887	3,000
400	202.71	XIX / 3.686	18.43	559	59.74	0.165	2,500
450	228	XIX / 3,909	19.55	629	67.19	0.1467	2,000
500	253.35	XIX / 4.120	20.6	698	74.64	0.1321	2,000
550	278.6	XXXVII / 3.096	21.67	768	83.8	0.1202	2,000
600	303.8	XXXVII / 3.233	22.63	838	91.38	0.1102	2,000
650	329.25	XXXVII / 3.366	23.56	908	97.94	0.1016	2,000
700	354.55	XXXVII / 3.493	24.45	978	102.2	0.0944	3,500
750	380.2	XXXVII / 3.617	25.32	1,049	109.6	0.088	3,000
800	405.15	XXXVII / 3.734	26.14	1,117	116.8	0.0826	3,000
900	456.16	XXXVII / 3.962	27.73	1,258	131.5	0.0733	3,000
1,000	506.71	XXXVII / 4,176	29.23	1,399	146.1	0.066	2,500

Aaac

Product: Allaluminum Alloy Conductors

Signa: BS en (L) CLXXXII

Typical Tractus:

Codex	Regio		Projectus et filum Dia.	Proxime. Oyerall diameter	Pondus	Nominal Praevaricatio Onus	Nominal DC Resistentia In XX ℃	Vexillum Longitudo
	Nominal	Re	Projectus et filum Dia.	Proxime. Oyerall diameter	Pondus	Nominal Praevaricatio Onus	Nominal DC Resistentia In XX ℃	Vexillum Longitudo
	mm²	mm²	mm	mm	kg / km	Kn	Ohm / km	M ± V
	10	11.9	VII / 1.47	4.41	32	3.33	2.277	2,500
Arca	15	18.8	VII / 1.85	5.55	51	5.27	1.749	2,000
Acacia	20	23.9	VII / 2.08	6.24	65	6.7	1.384	2,500
Amygdalus	25	30.1	VII / 2.34	7.02	82	8.44	1.094	2,000
Cedrina	30	35.5	VII / 2.54	7.62	97	9.95	0.9281	2,000
	35	42.2	VII / 2.77	8.31	115	11.83	0.78	2,000
Abies	40	47.8	VII / 2.95	8.85	131	13.4	0.688	2,500
Corylus	50	59.9	VII / 3.30	9.9	164	16.8	0.5498	2,000
PINE	60	71.7	VII / 3.61	10.83	196	20.1	0.4595	3,000
	70	84.1	VII / 3.91	11.73	230	23.57	0.3917	3,000
Saligno	75	89.8	VII / 4.04	12.12	246	25.17	0.3669	2,500
	80	96.5	VII / 4.19	12.57	264	27.04	0.341	2,500
	90	108.8	VII / 4.45	13.35	298	30.5	0.3026	2,000
Quercus	100	118.9	VII / 4.65	13.95	325	33.3	0.2769	2,000
	100	118.7	XIX / 2,82	14.1	326	33.3	0.2786	2,000
Moro	125	151.1	XIX / 3,18	15.9	415	42.3	0.219	3,000
Cinis	150	180.7	XIX / 3.48	17.4	497	50.6	0.183	3,000
Ulmo	175	211	XIX / 3.76	18.8	580	59.1	0.1568	2,500
Populus	200	239	XXXVII / 2.87	20.09	660	67	0.1387	2,500
	225	270.3	XXXVII / 3.05	21.35	744	75.7	0.1224	2,000
SYCAMICUS	250	303	XXXVII / 3.23	22.61	835	84.9	0.1094	2,000
Upas	300	362.1	XXXVII / 3.53	24.71	998	101.5	0.09155	2,000
	350	421.8	XXXVII / 3.81	26.67	1163	118.2	0.0786	3,000
Vocatus	400	479.9	XXXVII / 4.06	28.42	1323	134.5	0.06908	2,500
