Hot Sale 36kv Surge Arresser ad distribution linea

quantitas;
Availability:





Inquire Addere ad cartallum

Product Description

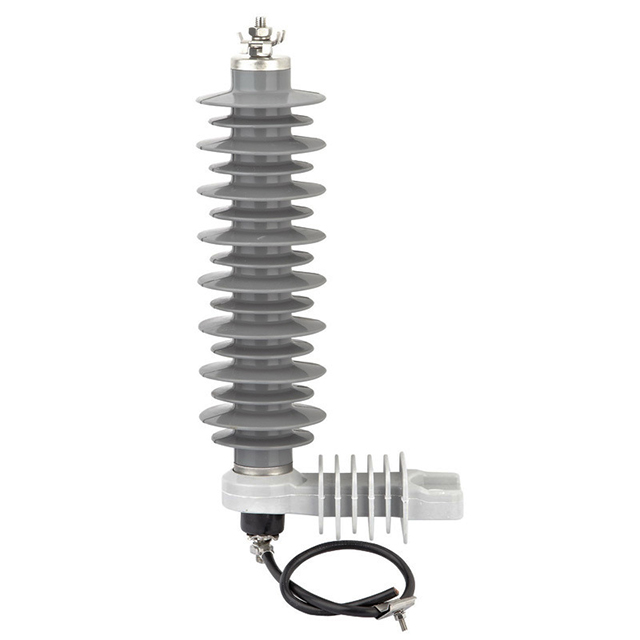

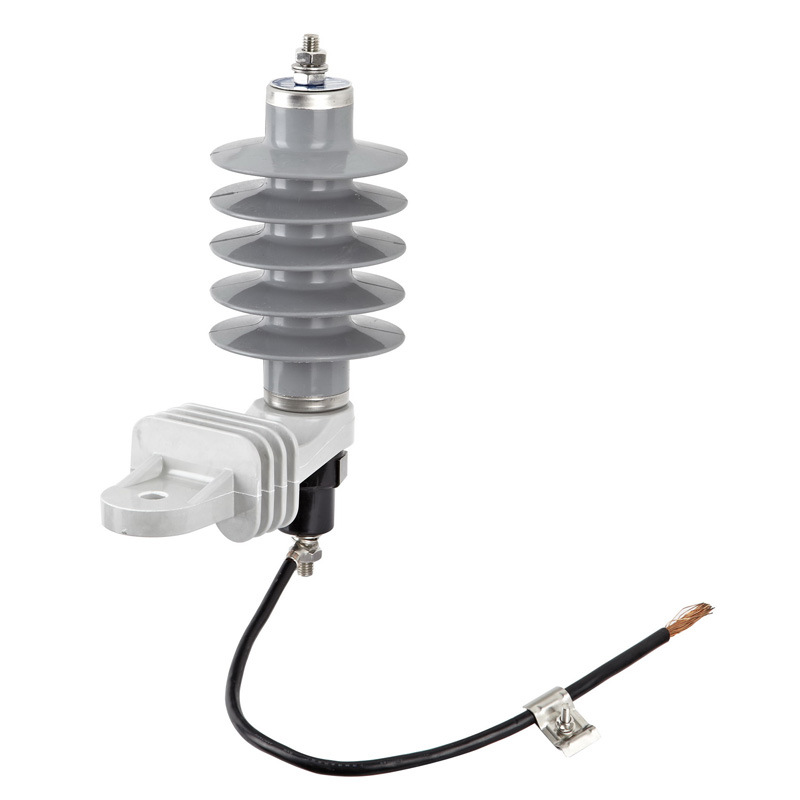

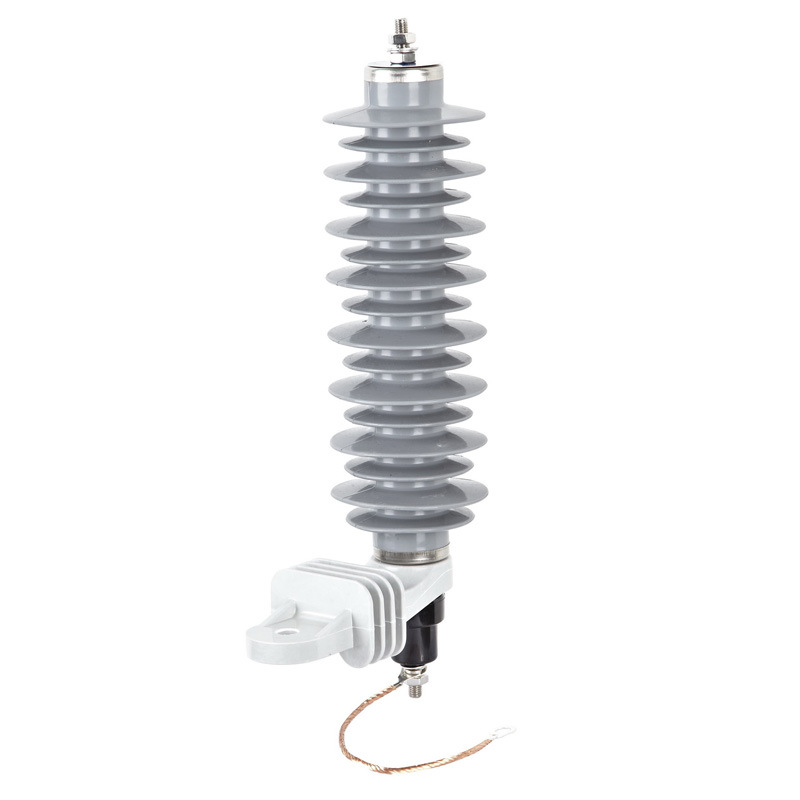

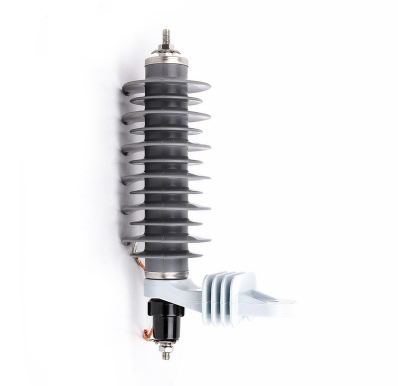

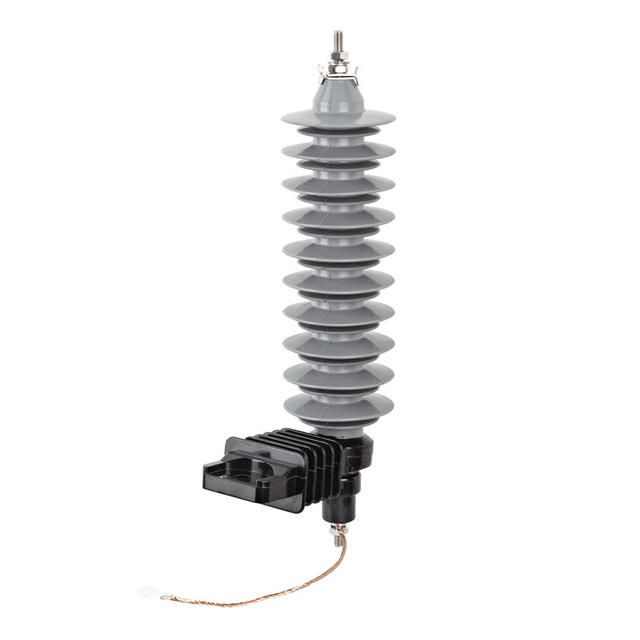

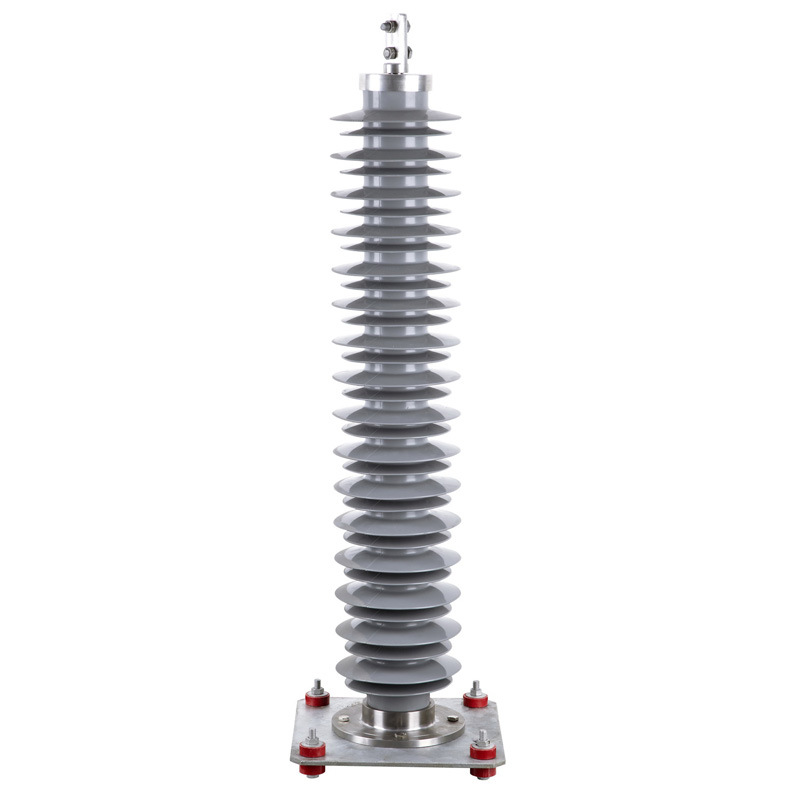

36KV High Voltage Surge Arresterae ad distribution linea

Zinc oxide surge areres es a significant incrementum in overvoltage praesidium technology. Superior perficientur, leve consilium, et sustentacionem libero operationem faciunt ea maluit choice pro modern electrica systems, inter se 36kv distribution lineas. Efficaciter clamping overvoltages et dissipans sempiterna navitas, ut reliability et Vivacitas electrica infrastructure.

Generativus

I. Rating: 0.22 ~ 500KV (Porcelain), 0.22 ~ 220kv (Composita)

Signa

Zinc oxide surge areres debet propinquos meos cum internationalis signa ut tutum et certa operatio. Key signa includit:

IEC 60099-4 : Internationalis vexillum pro metallum, oxide surge areres sine hiatus.
IEEE C62.11 : IEEE vexillum pro metallum, oxide surge areres ad AC virtus circuitus.
ANSI / NEMA La I : American National Standard pro Surge areres.

Operatio

Ratio Voltage : Arresterarius est disposito ad 36KV distribution ratio . Oportet operari continuously ad systema normalis operating voltage.

Rated voltage : et rated voltage de Arresser ut par vel excedunt ratio est maximum continua operating voltage (McOV).
Tempus OverVoltages : Arresser debet sustinere temporaria overvoltages (eg, durante vitiis et switching) sine damnum.

Leakage Current :

Sub normalis operating conditionibus, in arrter sino tantum a valde parva leakage current (microamps et milliamps) debitum ad excelsum resistentia cadmiae cadmiae.

Surge Current Handling :

Artrester debet esse potens summo excelsum surge excursus (eg a fulgur ferit vel commutationes mota) sine degradation.
Typical surge current rating range ex 5ka ad 20ka vel altius, secundum applicationem.

Energy effusio :

Arresterae absorbet et dissipare industria ex overvolntage certe sine defectum. Hoc est metiri Kilojoules (KJ).

Temperature range :

Zinc oxide surge areres typically agunt in late temperatus range, ex -40 ° C ad + LX ° C vel altius, fretus in consilio et habitationi materiales.
Extreme temperaturis potest afficit perficientur et lifespan de arrester.

Pollutio et contaminationem :

Arresseris est resistere pollutio campester in installation environment (eg, industriae areas, maritimum regionum cum sal imbre).
Polymer, Housed areres maxime repugnant pollutio et contaminationem.

Umor et humorem :

Artresseris debet signari ne umor ingressu, quod potest cadit suum perficientur.

UV Radiation :

Nam velit installations, Arresterae oportet repugnant ad UV radialem, quod potest degradate polymer habitationi in tempore.

Altitudo :

Arresseris operari efficaciter ad institutionem altitudo. High altitudo installations ut requirere debitum reducitur aer densitate.

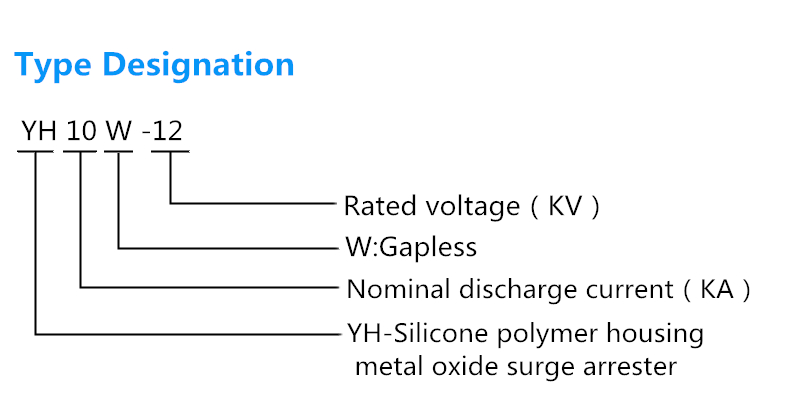

Technica modularis

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-5W-VI	6	5.1	18		320	150	65
YH-5w-IX	9	7.65	27		430	150	65
YH-5W-XII	12	10.2	36		430	150	65
YH-5W-XV	15	12.75	45		530	150	65
YH-5W-XVIII	18	15.3	54		530	150	65
YH-5w-XXI	21	16.8	63		640	150	65
YH-5W-XXIV	24	19.2	72		640	150	65
YH-5w-XXVII	27	21.6	81		740	150	65
YH-5W-XXX	30	24	90		890	150	65
YH-5W-XXXIII	33	26.4	99		890	150	65
YH-5W-XXXVI	36	28.8	108		1115	150	65

II. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (10Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-10W-VI	6	5.1	18	1	320	250	100
YH-10W-IX	9	7.65	27	1	430	250	100
YH-10W-XII	12	10.2	36	1	430	250	100
YH-10W-XV	15	12.75	45	1	530	250	100
YH-10W-XVIII	18	15.3	54	1	530	250	100
YH-10W-XXI	21	16.8	63	1	640	250	100
YH-10W, XXIV	24	19.2	72	1	740	250	100
YH-10W-XXVII	27	21.6	81	1	740	250	100
YH-10W-XXX	30	24	90	1	890	250	100
YH-10W-XXXIII	33	26.4	99	1	890	250	100
YH-10W-XXXVI	36	28.8	108	1	1115	250	100
YH-10W-XLII	42	33.6	126	2	1260	400	100
YH-10W-XLVIII	48	39	139	2	1260	400	100
YH-10W-LIV	54	42	160	2	1260	400	100
YH-10W-LX	60	48	178	2	1465	400	100
YH-10W-LXVI	66	52.8	196	2	1465	400	100
YH-10W-LXXII	72	57	214	2	2255	400	100
YH-10W-LXXXIV	84	67.2	244	2	2255	400	100
YH-10W-XC	90	72.5	249	2	2255	400	100
YH-10W-XCVI	96	75	265	3	3555	800	100
YH-10W CVIII	108	84	281	3	3555	800	100
YH-10W-CXX	120	96	300	3	4153	800	100
YH-10W-CL	150	120	416	3	5040	800	100
YH-10W-CC	200	156	520	3	7110	800	100

III. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser pro ac Ratio (20KA series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
YH-20W-CVIII	108	84	281	3	3555	800	100
YH-20W-CXX	120	96	300	3	4153	800	100
YH-20W-CL	150	120	416	3	5040	800	100
YH-20W-CC	200	156	520	3	7110	800	100

IV. Metal Oxide Porcelain habitationi (Gapless) Type Surge Arresser AC Ratio (5Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y5W-VI	6	5.1	18		280	150	65
Y5W-IX	9	7.65	27		320	150	65
Y5W-XII	12	10.2	36		320	150	65
Y5W, XV	15	12.75	45		450	150	65
Y5W-XVIII	18	15.3	54		450	150	65
Y5W-XXI	21	16.8	63		450	150	65
Y5W, XXIV	24	19.2	72		510	150	65
Y5W, XXVII	27	21.6	81		510	150	65
Y5W-XXX	30	24	90		890	150	65
Y5W-XXXIII	33	26.4	99		890	150	65
Y5W-XXXVI	36	28.8	108		890	150	65

V. Black Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser pro ac Ratio (10Ka Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y10w-VI	6	5.1	18	1	280	250	100
Y10w-IX	9	7.65	27	1	320	250	100
Y10W-XII	12	10.2	36	1	320	250	100
Y10w, XV	15	12.75	45	1	450	250	100
Y10w-XVIII	18	15.3	54	1	450	250	100
Y10w-XXI	21	16.8	63	1	450	250	100
Y10W, XXIV	24	19.2	72	1	510	250	100
Y10w, XXVII	27	21.6	81	1	510	250	100
Y10w-XXX	30	24	90	1	890	250	100
Y10W-XXXIII	33	26.4	99	1	890	250	100
Y10W-XXXVI	36	28.8	108	1	890	250	100
Y10w-XLII	42	33.6	126	2	1256	400	100
Y10w-XLVIII	48	39	139	2	1256	400	100
Y10w-LIV	54	42	160	2	1256	400	100
Y10w-LX	60	48	178	2	1440	400	100
Y10w, LXVI	66	52.8	196	2	1440	400	100
Y10W-LXXII	72	57	214	2	1440	400	100
Y10W-LXXXIV	84	67.2	244	2	2200	400	100
Y10W, XC	90	72.5	249	2	2200	400	100
Y10W, XCVI	96	75	265	3	3350	800	100
Y10w-CVIII	108	84	281	3	3350	800	100
Y10W-CXX	120	96	300	3	3948	800	100
Y10w, CL	150	120	416	3	4400	800	100
Y10w, CC	200	156	520	3	6700	800	100

VI. Metal Oxide Polymer Habitationi (Gapless) Type Surge Arresser AC Ratio (20KA Series)

Exemplar	Rated voltage (KVR.ms)	Continua operating voltage (kvr.ms)	Fulgur impetus residua voltage sub nominis missionem current (	Linea fluxum genus	Creepage procul (mm)	2ms quadrata unda impetus current wortstands (a)	IV / 10μhigh current impetus resistit (Kap)
Y20w, CVIII	108	84	281	3	3555	800	100
Y20w-CXX	120	96	300	3	4106	800	100
Y20w, CL	150	120	416	3	4400	800	100
Y20w, CC	200	156	520	3	6700	800	100
Y20w, CDXLIV	444	324	1106	4	17052	2000	100

Key Consid Lectio

Rated voltage : oportet inserere ratio voltage (eg, 36kv pro application).
Energy effusio capacitatem : ensure arrester potest tractare expectata surge industria.
Environmental Conditions : Elige Polymer, Housed areres ad polluta vel maritimas areas.
Signa obsequio : ensure arresser occurrit pertinet signa (eg, IEC 60099-4, IEEE C62.11).

Comparatio cum traditional surge areres

Feature	Zinc Oxide Surge Arrester	Traditional Surge Arresser
Scintilla gap	Scintilla	Requirit scintillam gap ad operationem
RESPONSIO Tempus	Maxime ieiunium (Nanoseconds)	Tarder propter scintillam gap ionization
Leakage Current	Valde humilis (microamps et milliamps)	Superiore Leakage Current
Energy effusio	Maximum industria effusio facultatem	Limited Energy Effusio capacitatem
Pondus	Lightweight (Polymer habitationi)	Gravior (Porcelain habitationi)
Pollutio	Optimum (Polymer habitationi resistit pollutio)	Minus repugnans ad pollutio
Sustentationem	Sustentacionem-Free	Requirit periodica sustentationem

Stipare et shipping

Usus lignea boxes et plastic packaging praesidio products ex physica damnum, humorem et environmental scelerisque.

Delivered worldwide via mare, aer, aut terram feugiat. Custom Shipping Solutions sunt available secundum Customer elit.
