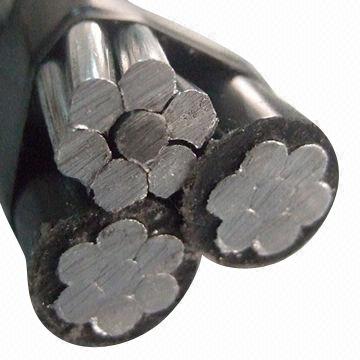

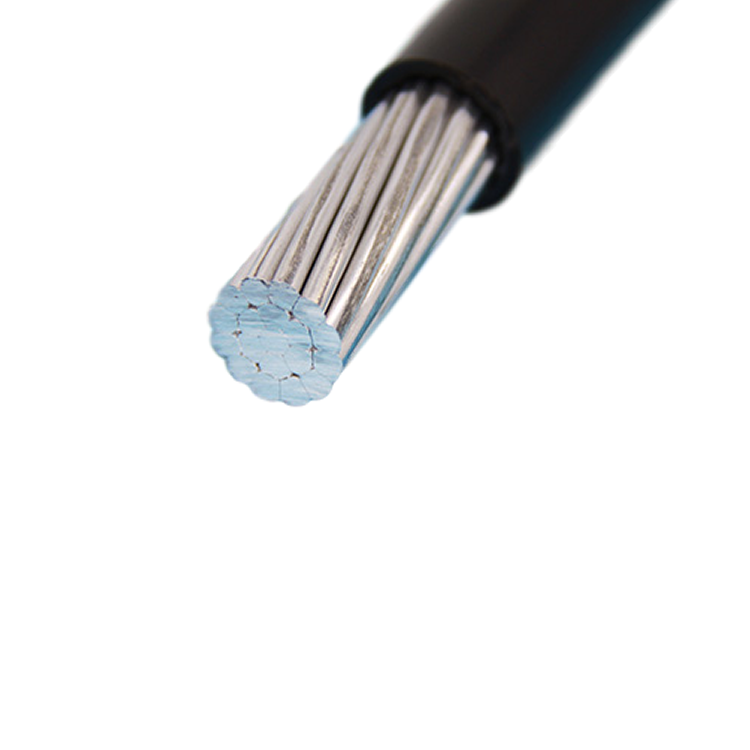

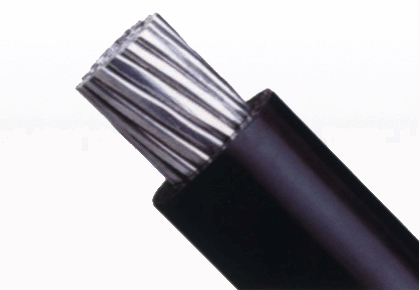

HD DCXXVI humilis voltage aeria bundled funem (ABC) ad architecturae potentia distribution

Availability:
quantitas;
Inquire Addere ad cartallum

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Overview

In HD DCXXVI humilis voltage aeria bundled funem (ABC) cum nudum neutrum nuntius tradit fideliora potentia distribution pro architecturae et aedificationem applications. Disposito enim diuturnitatem et obsequio cum internationalis signa, id ensures tutum caput installations.

Signa

  • Obsequium: HD DCXXVI S1: MCMXCVI Part V-section D, Amka (SFS MMCC)

  • Certification: Rohs, IEC (VI) DII

Constructio

  • Phase Conductors: Aluminium Core cum Cross-Coniunctum Polyethylene (xlpe) Nulla.

  • Nuntius neutrum: Nudum Aluminium Alloy Conductor ad mechanica vires et grounding.

Technical notitia

Crucem sectionem

Conductor

Diameter

Crassitudine in Vallis

Core diameter

Vena portantes facultatem

Praevaricatio

Onus

(Mm²)

min.

tolerantia

Nom.

min.

min.

Max.

(A *)

(KN)

(M)

(M)

(M)

(M)

(M)

16

4.4

± 0.05

1.4

7.1

7.3

70

25

5.9

± 0.02

1.4

8.3

9.1

95

35

6.9

± 0.02

1.6

9.7

10.5

115

50

8.1

± 0.25

1.6

10.8

11.8

140

70

9.7

± 0.25

1.8

12.8

13.8

180

120

12.8

± 0.30

2.0

16.2

17.4

250

*  Defined  pro  ambientium  temperatus  de XXV ℃  et  max.conductor  temperatus  de LXX ℃.

Dimensiones neutrum nuntius conduc tominum​

Crucem sectionem

Conductor diameter

Crassitudine in Vallis

Core diameter

Vena portantes facultatem

Solveret onus

(Mm²)

min.

tolerantia

Nom.

min.

min.

Max.

(A *)

(KN)

(M)

(M)

(M)

(M)

(M)

25

5.9

± 0.02

5.5

6.3

7.4

35

6.9

± 0.02

6.5

7.3

10.3

50

8.1

± 0.25

7.6

8.6

14.2

70

9.7

± 0.25

9.2

10.2

20.6

95

11.4

± 0.30

10.8

12.0

27.9


Dimensiones  cable  fascis ​

Numerus of Phase Cores × crucem sectioni + publico dolor Conductors

+ Neutral Cross section

(Mm²)

Fascis diameter

Proxime.

(M)

I × XVI + XXV

15

III × XVI + XXV

22

IV × XVI + XXV

22

III × XXV + XXXV

26

IV × XXV + XXXV

26

III × XXXV + L

30

III × L + LXX

35

III × LXX + XCV

41

III × CXX + XCV

47

Applicatio

Specimen enim architecturae potentia networks, comprehendo:

  • Aedificium tributarius potentia lineae.

  • In urbana distribution) Ruris infrastructure.

  • Non idoneam sepulturam (etiam in condits).

applicatio

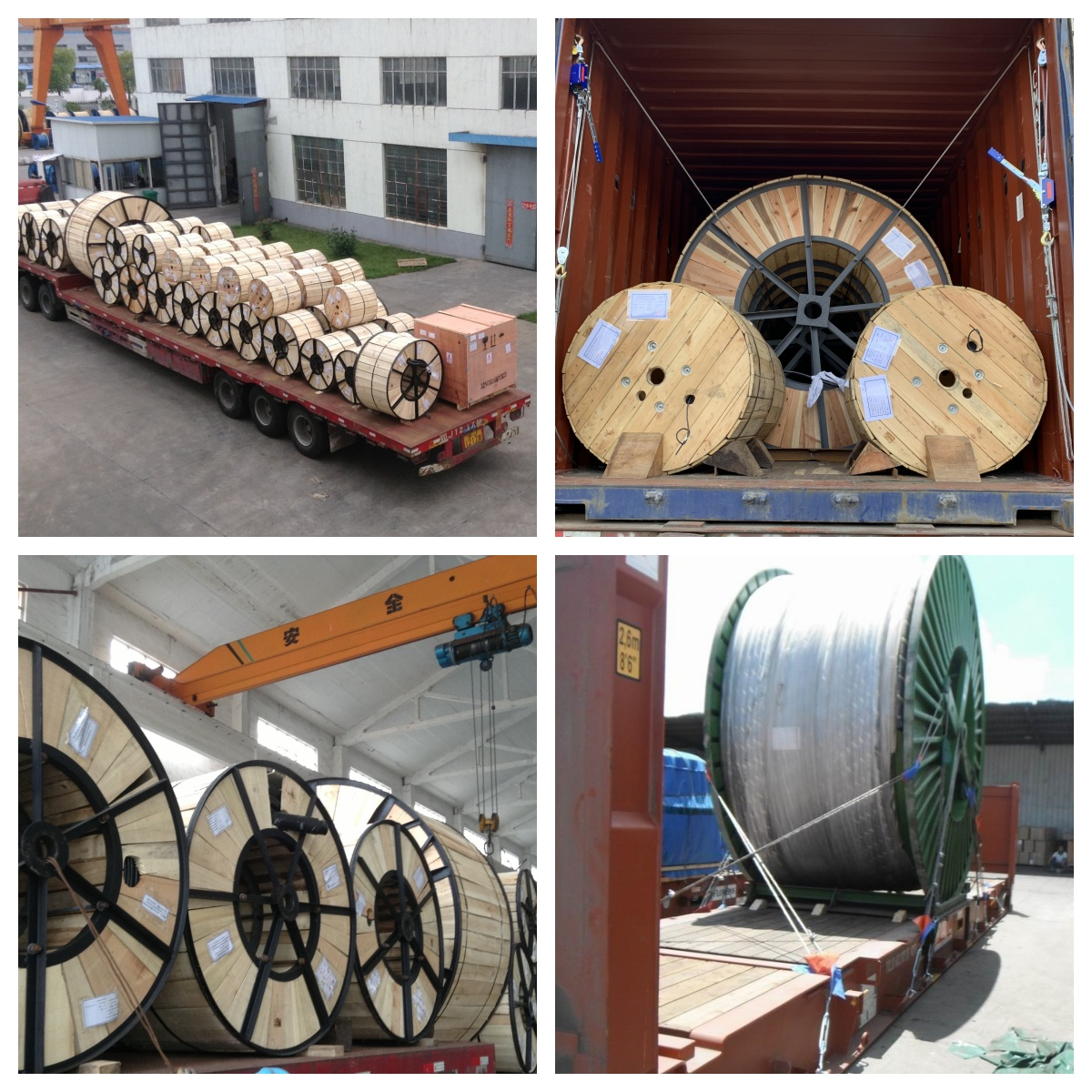

Sarcina & Shipping

  • Packaging, lignea agitator cum humorem, probationem involuti.

  • Shipping: Latin Export packaging, Fusce per ordinem.

stipare


Code: ABC 0.6 / 1KV.

Signa: HD DCXXVI  S1: MCMXCVI  part5-section D, Amka (SFS     MMCC).

Construction: Phase  Conductors: Aluminium Conductors cum xlpe Nulla.

Nuntius neutrum: Aluminium Conductors.

Application : aeria bundled Conductors sunt in tributarius retiacula potestas aedificia et internum networks.

Installation: Hae rimores non liceat sepulti, etiam in condits.

Dimensiones Phase Conductors ​

Crucem sectionem

Conductor

Diameter

Crassitudine in Vallis

Core diameter

Vena portantes facultatem

Praevaricatio

Onus

(Mm²)

min.

tolerantia

Nom.

min.

min.

Max.

(A *)

(KN)

(M)

(M)

(M)

(M)

(M)

16

4.4

± 0.05

1.4

7.1

7.3

70

25

5.9

± 0.02

1.4

8.3

9.1

95

35

6.9

± 0.02

1.6

9.7

10.5

115

50

8.1

± 0.25

1.6

10.8

11.8

140

70

9.7

± 0.25

1.8

12.8

13.8

180

120

12.8

± 0.30

2.0

16.2

17.4

250

*  Defined  pro  ambientium  temperatus  de XXV ℃  et  max.conductor  temperatus  de LXX ℃.

Crucem sectionem

Conductor diameter

Crassitudine in Vallis

Core diameter

Vena portantes facultatem

Solveret onus

(Mm²)

min.

tolerantia

Nom.

min.

min.

Max.

(A *)

(KN)

(M)

(M)

(M)

(M)

(M)

25

5.9

± 0.02

5.5

6.3

7.4

35

6.9

± 0.02

6.5

7.3

10.3

50

8.1

± 0.25

7.6

8.6

14.2

70

9.7

± 0.25

9.2

10.2

20.6

95

11.4

± 0.30

10.8

12.0

27.9

Dimensiones     cable     fascis     ​

Numerus of Phase Cores × crucem sectioni + publico dolor Conductors

+ Neutral Cross section

(Mm²)

Fascis diameter

Proxime.

(M)

I × XVI + XXV

15

III × XVI + XXV

22

IV × XVI + XXV

22

III × XXV + XXXV

26

IV × XXV + XXXV

26

III × XXXV + L

30

III × L + LXX

35

III × LXX + XCV

41

III × CXX + XCV

47

LV-ABC lineas cum insulatas neutrum nuntius

Code: ABC 0.6 / 1KV.

Signa: HD DCXXVI S1: MCMXCVI Pars VI-section E, Amka (SFS MMCC)

Construction: Aluminium Conductors cum xlpe  velit.

Application: aeria bundled Conductors sunt in tributarius retiacula potestas     aedificia et internum networks.

Installation: Hae rimores non liceat sepulti, etiam in condits.

Dimensiones Phase Conductors ​

Crucem sectionem

Conductor

Diameter

Crassitudo

Initium

Core diameten

Vena portantes facultatem

Solveret onus

(Mm²)

min.

Max.

Nom.

min.

min.

Max.

(A *)

(KN)

(M)

(M)

(M)

(M)

(M)

16

4.6

5.1

1.2

7.0

7.8

25

5.8

6.3

1.4

8.6

9.4

112

35

6.8

7.3

1.6

10.0

10.9

138

50

7.9

8.4

1.6

11.1

12.0

168

70

9.7

10.2

1.8

13.3

14.2

213

95

11.0

12.0

1.8

14.6

15.7

258

120

12.0

13.1

1.8

15.6

16.7

306

150

13.9

15.0

1.7

17.3

18.6

344

* Defined pro ambientium temperatus de XXX ℃ et max. Conductor temperatus de XC ℃.

Dimensiones neutrum Messenger Conductors ​

Crucem sectionem

Conductor

Diameter

Crassitudo

Initium

Core diameter

Vena portantes facultatem

Praevaricatio

Onus

(Mm²)

min.

tolerantia

Nom.

min.

min.

Max.

(A *)

(KN)

(M)

(M)

(M)

(M)

(M)

54.6

9.2

9.6

1.6

12.3

13.0

16.6

70

10.0

10.2

1.5

12.9

13.6

20.5

95

12.2

12.9

1.6

15.3

16.3

27.5

* Defined pro ambientium temperatus de XXX ℃ et max.conductor temperatus de XC ℃.

Dimensiones cable fascis  ​

Numerus of Phase Cores × crucem sectioni + publico dolor Conductors

+ Neutral Cross section

(Mm²)

Fascis diameter

Proxime.

(M)

III × XXV + 54,6

30.0

III × XXXV + K × XVI + 54,6

33.0

III × L + K × XVI + 54,6

36.0

III × LXX + K × XVI + 54,6

37.5

III × LXX + K × XXV + 54,6

40.0

III × LXX + K × XVI + LXX

41.0

III × XCV + K × XVI + LXX

44.0

III × CXX + K × XVI + LXX

46.0

III × CXX + K × XVI + XCV

47.0

III × CL + K × XVI + LXX

48.0

III × CL + K × XVI + XCV

49.0

* Nota: K numerus publico lucting Conductors (K potest esse aequalis ad 0.1.2.Or III).
