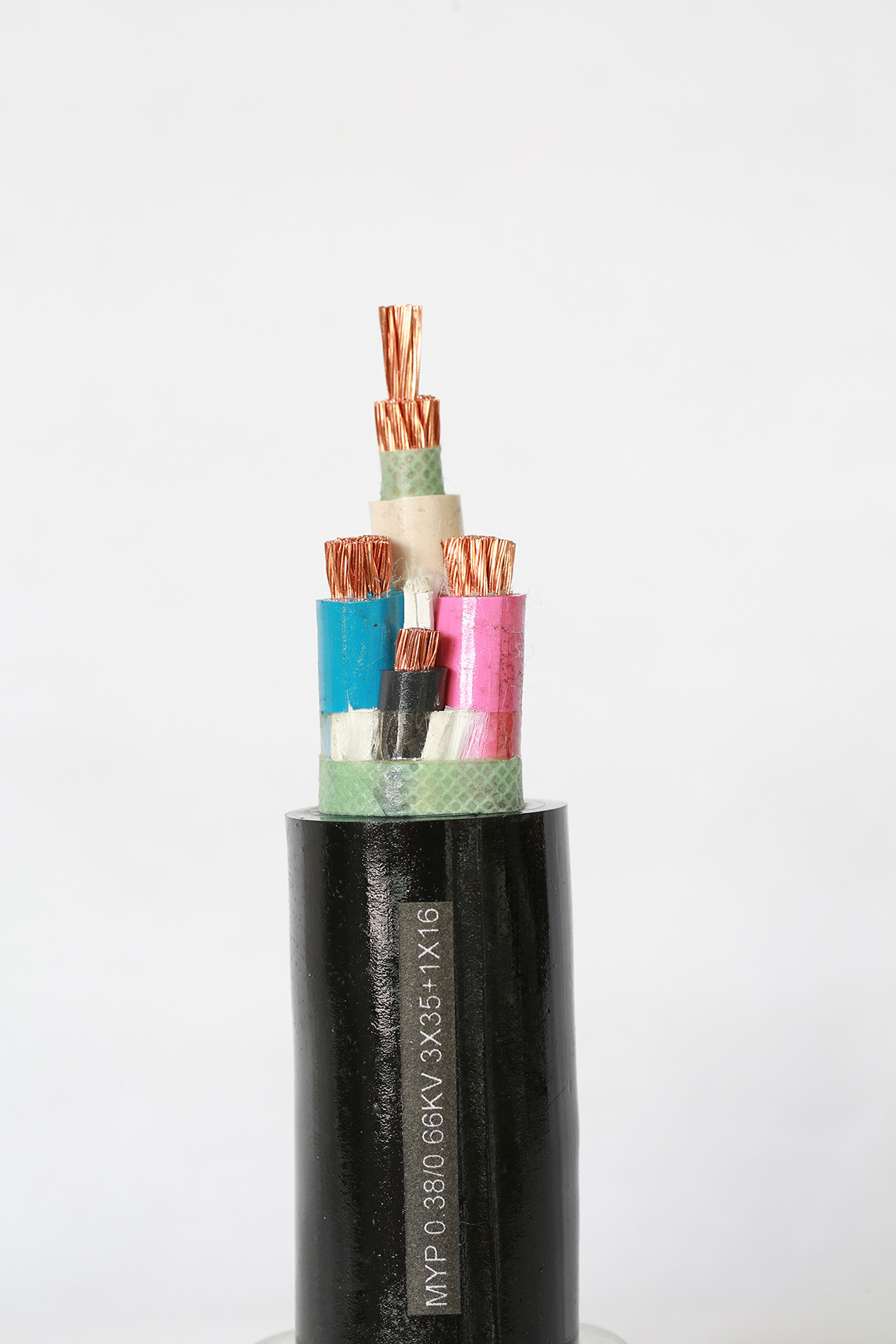

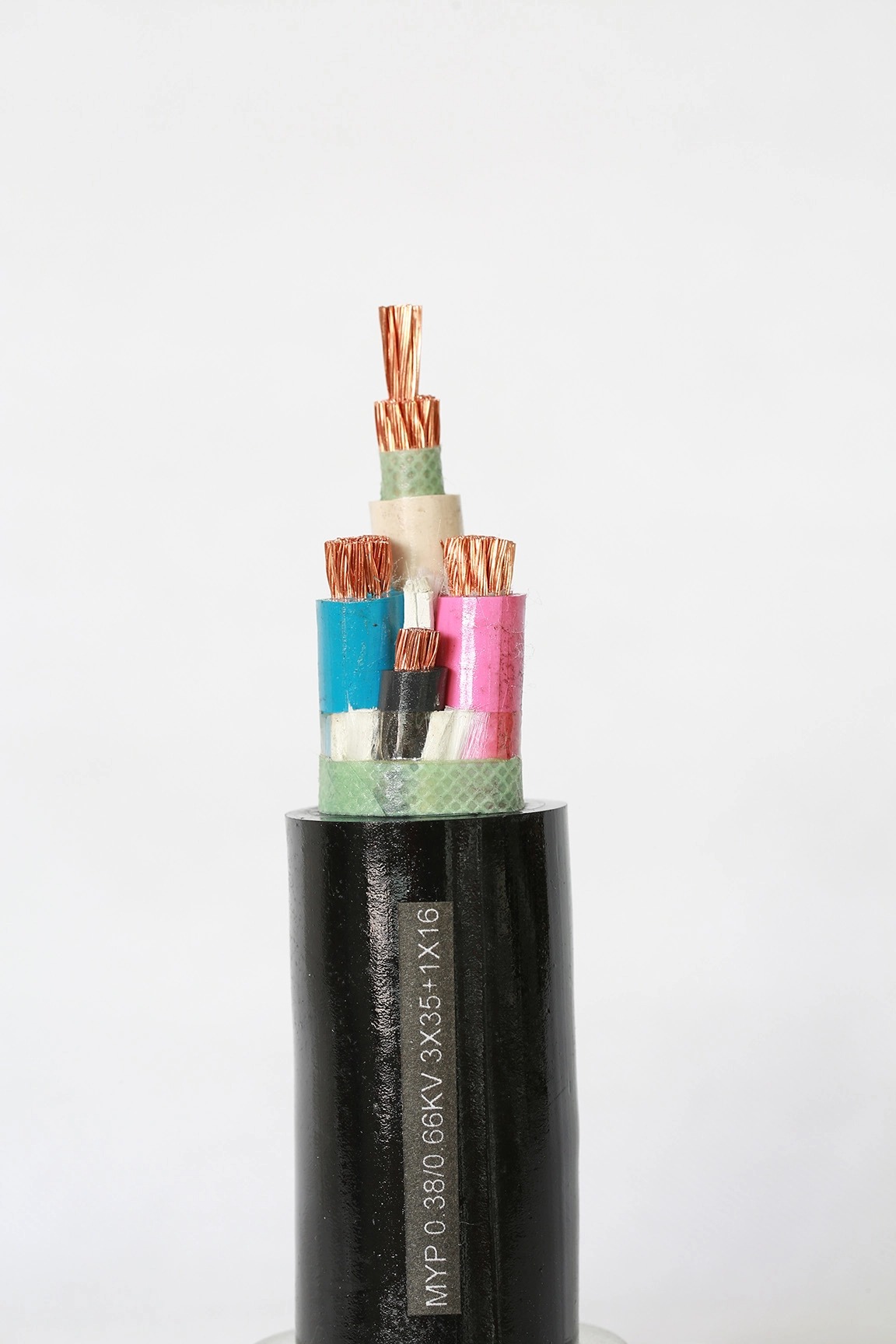

LAT CABLE 0.6/1kV Solidus Copper Conductor Indoor Cable (Product Code: Flat Cables, Exemplar: MYP-0-38-0-66KV-3x35-1x16) summus effectus est, funem electricam flexibilem machinatum ad certas translationis potentias umbraticas in:
Applicationes residentiales
Commercial aedificia
Industrialis facilities
Designatum et fabricatum ab Oriente Energy Electrical Engineering Co., Ltd. - professionalis incepti specialiter in:
Systema electrica R&D
Virtus engineering
Energy solutiones
Funis hic salutem, diuturnitatem et obsequium cum signis globalis efficit;
| Standard | Description |
|---|---|
| Ty (IX) DCCLX | Turcorum vexillum |
| IEC 60227 | International vexillum pro PVC insulatas retinacula |
| VDE 0281 | German vexillum |
| BS 6500 | British vexillum ad flexibiles rudentes |
| Pluma | Descriptio |
|---|---|
| Plana design | Optimizes spatii efficientiam in officinae |
| Robustum constructione | Fideiussores longi-term operationis |
| Conductor aeris solidum | Princeps conductivity, perficientur certa |
| Rated voltage | 0.6/1 kV |
Industriae plantae
Commercial aedificia
Residentiales complexa
Switching stationes
Imperium Panel
| Feature | Description | Beneficium |
|---|---|---|
| Magnum Conductivity | Corculum aeneum solidum efficit resistentiam electricam humilem (eg, 18.1 Ω/km pro 1 mm²) | Praebet agentibus current tradenda cum minimis industria damnum (I²R damna) |
| Aucta salus | PVC velit et vagina exterior duplicem tutelam praebent | Protegit contra lacus electrica, ingressum, humum, umorem et impulsum mechanicos minores |
| DESPRIMENTUM | Plana cable profile simplifies excitavit in stricta spatia | Specimen ductus funes, emunctoria, ductus occulti, et areae-accessus limitatae |
| Global Obsequium | Signa internationalia occurrunt (IEC, VDE, BS) | Facultates usus in inceptis quaerunt elementa certificata et exportare ad mercatus globalis |
| Flexibile Application | Apta ad amet wiring, plantae industriales, statio mutandi et officinae subterraneae (cum addito praesidio mechanico) | Inventarium reducit complexionem cum uno fune generis ad plures applicationes |
| ECFECTUS | Leve consilium reducit shipping costs; facilem institutionem salvet laboris tempus | Totalis sumptus demittit project (TCO) |
| Versatility | Available in 2-core and 3-core configurations (1-4 mm) cross-sectiones) | Diversa onus postulata aequat de ambitus potentiae decursibus illustrando |
| Material | Description | |
|---|---|---|
| Conductor | Solidum aeris (Class 1 per IEC 60228) | Princeps conductivity, humilis resistentia, facilis terminatio |
| Initium | PVC (Polyvinyl Chloride) Type A | Color-coded (brunneis / caeruleis pro II-core, brunneis / caeruleo / viridi-flavo in III-core) |
| Filler | PVC vel non-hygroscopic materia | Circumstat figura et integritas mechanica |
| Exterior Vagina | PVC (Polyvinyl chloride) | Plana profile, UV stabiliuntur, flammea retardant |
| Cores × mm² | Wire Diameter (mm) | Insulation Crassitudo (mm) | Vagina Crassitudo (mm) | DC Resistentia @20°C (Ω/km) | Pondus (kg/km) | Current Capacitas (Pipe) A | Capacitas Current (Air) A |
|---|---|---|---|---|---|---|---|
| II × I mm² | 1.1 | 0.6 | 0.8 | 18.1 | 50.0 | — | 19 |
| II × 1.5 mm² | 1.35 | 0.7 | 0.8 | 12.1 | 66.0 | 32 | 20 |
| II × 2.5 mm² | 1.73 | 0.8 | 1.0 | 7.41 | 104 | 42 | 20 |
| II × IV mment | 2.19 | 0.8 | 1.1 | 4.61 | 143 | 54 | 20 |
| III × I mm² | 1.1 | 0.6 | 0.8 | 18.1 | 73.0 | — | 20 |
| III × 1.5 mm² | 1.35 | 0.7 | 0.9 | 12.1 | 101 | 26 | 20 |
| III × 2.5 mm² | 1.73 | 0.8 | 1.1 | 7.41 | 158 | 34 | 20 |
| III × IV mm² | 2.19 | 0.8 | 1.2 | 4.61 | 216 | 44 | 20 |
| Parameter | Precium |
|---|---|
| Maximum continua operating temperatus | 70°C (conductor) |
| Maximum brevis-circuitu temperatus | CLX ° F (usque ad V seconds) |
| Minimum institutionem temperatus | 0°C (funis pre-calefieri debet, si infra 0°C) |
| Agens ambiens temperatus range | -5°C ad +50°C |
| Parameter | valorem | vexillum |
|---|---|---|
| Rated voltage (U₀/U) | 0.6/1 kV | IEC 60227 |
| Test voltage | 3 kV AC pro 5 minutes | IEC 60227 |
| Nulla resistentia | ≥ 10 MΩ·km (in 20°C) | IEC 60227 |
| Flamma retardatio | auto-extinguere | 60332-1 IEC |
Residentiales aedes - domus wiring, ambitus accensis, decursibus potentiae
Aedes commerciales - officium wiring, venditores venditores, hotels, hospitalia
Facultates educationis - scholae, universitates, laboratoria
Apparatus potentia copia - motores, soleatus, TRADUCTOR
Tabulae control - PLC wiring, instrumentation circuitus
Switching stationes – potestas auxiliaris, circuitus imperium
Planta electrification - officina area distribution
Rhoncus ductus - constituto profectus in edificiis
Cable emuncta - horizontali et verticali currit
Ductus - embedded in parietibus vel contignationibus
Inclusum raceways - sub erexit contignationem vel supra tecta
Institutiones subterraneas - tutus ductibus vel manicis ad ne mechanica damna
Fossa officinae - cum additional mechanica tutela (tegulas, arena tegumentum)
| Ratio | Explicatio |
|---|---|
| Reliability | Conductor aeris solidus et PVC strata obtinent firmum effectum sub 0.6/1kV æstimatum intentione, etiam in conditionibus exigendis. |
| Certified Quality | Sub stricto obsequio cum IEC, VDE, BS signa fabricari pro global acceptatione et approbatione moderante |
| ECFECTUS | Leve consilium reducit shipping costs; facilem institutionem servat laborem et consilium expensis |
| Versatility | Available in 2-core et 3 cori configurationibus (1-4 mm² sectionibus transversis) ad aequare diversum onus requisita ab accessu ad circuitus potentiae |
| Peritia fabrica | Subnixum ab Energy Orientalium annorum 15+ experientiae in electricis machinalis, solutionibus consuetis, subsidii globalis instrumenti |
| Salus | Ignis periculum retardat PVC flammea reducit; Nulla praebet duplex additional praesidium contra electrica inpulsa |
Firmam institutionem: 6 altiore diametro
Flexibile usus: 10 diametri altiore
Tensio maximam trahens: 50 N/mm² conductoris crucis-sectionis
Usus tenet trahens vel funem socks ad vitandum vaginam
Diligenter exue - aeris conductor vitare incidentes
Utere congruis terminalibus - anulus, furca, vel paxillus terminales pro solidis conductoribus
Torque ad speciem - in conductor potest laedas tensis
Maxime ductum satietatem: 40% (per NEC / IEC guidelines)
Usus maior ductibus ad diu currit vel plures rudentes
| Pluma | LAT Cable (Solid Copper, Flat) | Round PVC Cable (stranded Cupre) | Flat TPS Cable (Australia) |
|---|---|---|---|
| Conductor type | Solidum aeris (Class 1) | Aes destitutum (Class 5/6) | Aut solidum subductis |
| Profile | Flat | Circum | Flat |
| Spatium efficientiam | Optimum (vicium stricta spatia) | Pauper (requirit spatium) | Bonum |
| Terminatio otium | Securus (solidum filum) | Moderari (nebulas possunt proelia) | Securus |
| Mollitia | Moderor | Altum | Moderor |
| Cost | Humilis | Medium | Medium |
| Typicam applicationem | Fixum amet wiring | Instrumentum portatile, partes movens | Fixum wiring (Australia/NZ) |
| Standard | Description | Obsequium Status |
|---|---|---|
| IEC 60227 | PVC insulatas retinacula pro rated voltages usque ad 450/750V | plene obsecundantia |
| VDE 0281 | German vexillum ad PVC insulatas retinacula | plene obsecundantia |
| BS 6500 | British vexillum ad flexibiles rudentes | plene obsecundantia |
| Ty (IX) DCCLX | Turcorum vexillum ad PVC insulatas rudentes | plene obsecundantia |
| 60332-1 IEC | Flamma retardatio (perpendiculum unum test filum) | Obsequens |
| RoHS | Ancipitia substantiae restrictio | Obsequens |
| SPATIUM | Registration, Aestimatio, LICENTIA Chemicals | Obsequens |
| Type Packaging | Longitudo per Drum / | Application Coil |
|---|---|---|
| Plastic coil | 100m, 200m | Parva incepta, retail |
| Lignea orum | 500m, 1000m | Magna incepta, industriae |
| Lobortis box | Consuetudo longitudinum | OEM, speciality orders |
Shipping modi:
Mare feugiat - vexillum pro magnis ordinibus (20' vel 40' continentia)
Air Suspendisse - pro urgente vel parva ordines
Suspendisse terra - nam partus regional
Documenta inter se inclusa sit amet:
Stipare album
Cautionem commercialem
Exercitatione test tradit
Qualis certificatorium
Installation manual
| Exemplar | Cores × mm² | Color | Latin Packing | MOQ |
|---|---|---|---|---|
| LAT-2×1.0 | 2 1.0 mm² | Albus / Niger | 100m coil | 10 gyros |
| LAT-2×1.5 | II × 1.5 mm² | Albus / Niger | 100m coil | 10 gyros |
| LAT-2×2.5 | II × 2.5 mm² | Albus / Niger | 100m coil | 10 gyros |
| LAT-2×4.0 | 2 4.0 mm² | Albus / Niger | 100m coil | 10 gyros |
| LAT-3×1.0 | 3 1.0 mm² | Albus / Niger | 100m coil | 10 gyros |
| LAT-3×1.5 | III × 1.5 mm² | Albus / Niger | 100m coil | 10 gyros |
| LAT-3×2.5 | III × 2.5 mm² | Albus / Niger | 100m coil | 10 gyros |
| LAT-3×4.0 | 3 4.0 mm² | Albus / Niger | 100m coil | 10 gyros |
A: Solidum aes (I Classis) unicum filum habet, offerens impensas inferiores, terminationem faciliorem, et superiorem vires mechanicas ad certas officinas. Aes destitutum (Class 5/6) magis flexibile est et ad applicationes movendas vel portatiles aptas.
A: Hic funis ad usum tectis designatur. Ad applicationes velit, commendamus UV renitentes vel rudentes tempestatum repugnantes (eg, H05RN-F, H07RN-F, vel XLPE rudentes insulatas).
A: Ita. Nulla PVC et vagina sunt flammea retardata et exstinguentia secundum IEC 60332-1.
A: Temperatus conductor continuus maximus est 70°C. Brevis circuitus temperatus est 160°C.
A: Ita. Consuetudo longitudinum (exempli gratia 50m, 200m, 500m) et consuetudo imprimendi in promptu sunt postulante.
A: Ad certam institutionem: 6 diametro altiore. Ad usum flexibile: 10 diametro altiore.
