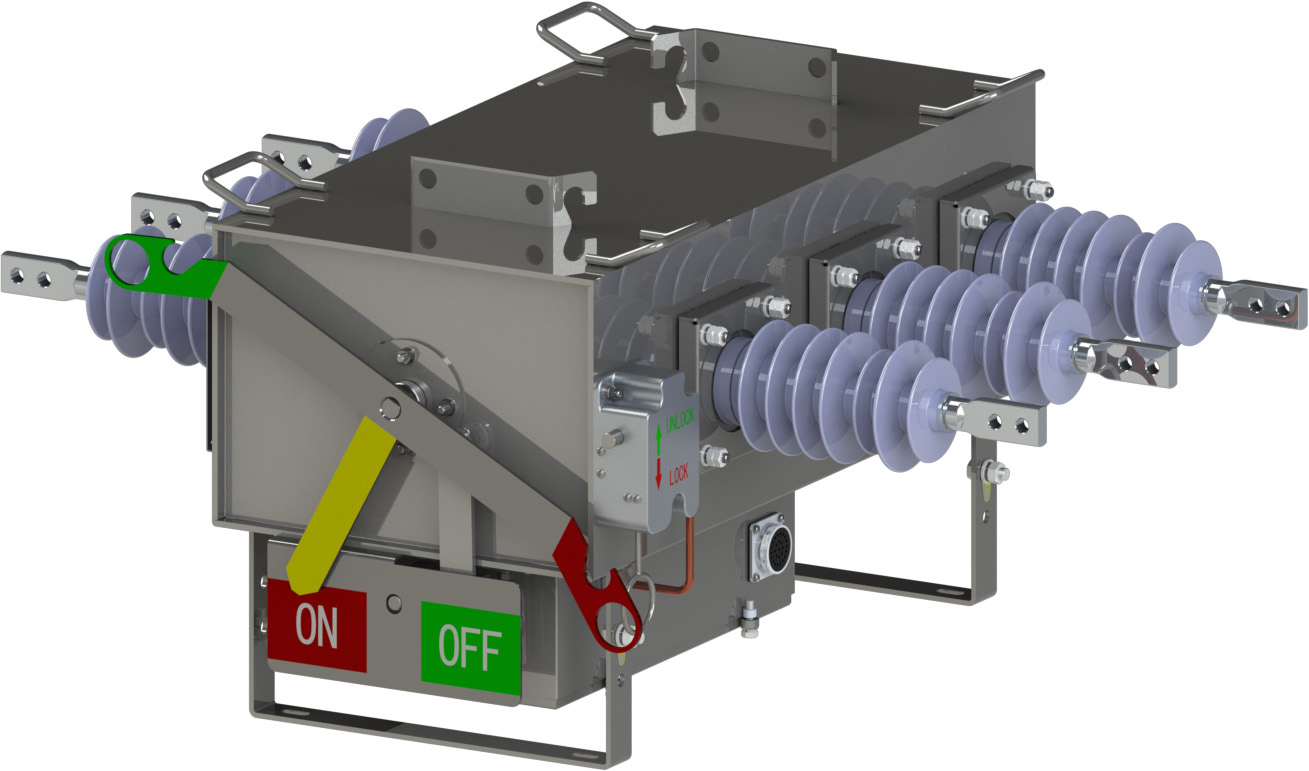

Poli mounted SF6 onus intermissum switch manual / motorize
6kv, ... .40.5KV, 400A, .. DCXXX, ... .1250A
Providit customized fabricantium
Totum solutiones consilio, Conventus, test
● Summary
RPS est SF6-insulated, velit polus mounted onus confractus switch familia enim caput lineae et specie
Disposito usus in modern remotis imperium distribution automation systems. Et RPS praebet reliable sustentacionem
Liberum operationem etiam in maxime postulat climatic condiciones inter saldum atmosphaerae, mordax industriae
pollutio, nix et glacies. Habet optimum onus fractionis et culpa faciens facultatem et satisfacit
Requirements certa ad onus confractus switch. Et in aggerhed metallum cisternina prohibet omnia possibilia leakage excursus per
an open switch. RPS potest manually operated aut motricium operated ad loci et remotis electrica imperium, upgraded.
● Service environment
1.air Temperature: Maximum Temperature: + LXXXV ℃; Minimum Temperature: -45 ℃
Umor menstrua Average Umor XCV%; Cotidie Average Umor XC%.
Altitudo super mare gradu, maximum installation altitudo: 2500m vel altius.
Ambientium caeli non videtur polluetur a mordendo et flammabiles Gas, vapor etc non crebris vehemens quassum
● oblationem
Et ad libitum classes ad rated current range:
XVTYPE RPS XV, Rating6-20 Kv cum 400A, XVI Kaup ad 1250a, 20KA;
--Type RS XXVII, Rating22-27 KV cum 400A, XVI Kaup ad 1250a, 20KA;
--Type RPS XXXVIII, Rating30-40.5 KV cum 400A, XVI Kaup ad 1250a, 20KA;

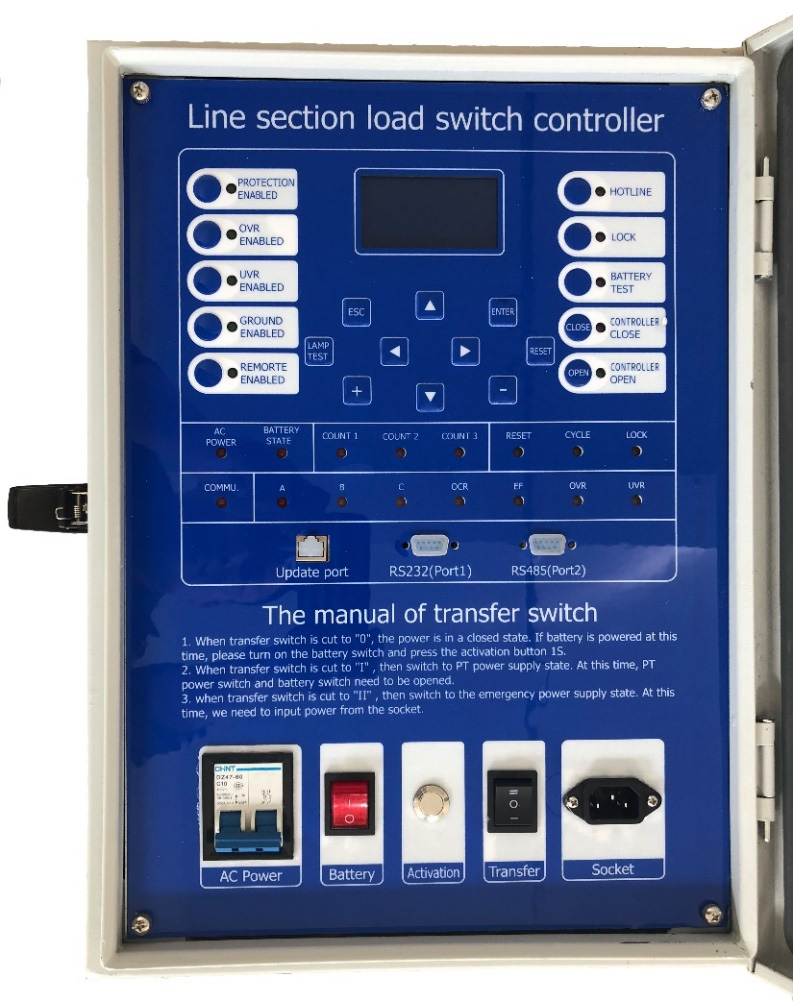

Cum ad libitum classes ad diversas eget applicationem installation:
Section Function (section)
L In Instantaneous / Definita-vicis oercurrent (P.OC)
LI tempus-overcurrent (p.fast curve / p.delay curva)
ONERO (n.fast curve / n.delay curva)
50n RELICTUM terra Instantaneous / Definita-vicis overcurrent (G.OC)
51n RELICTUM terrae TEMPUS-OVERCURRENT (G.Fast / G.Delay curva)
50SEF sensitive terra culpa (SEF)
51C Frigus onus (Frigus Lond)
TRSOTF SWITCH PB-onto-culpa (SOTF)
LIX in voltage ( L.Over Volt )
XXVII sub voltage (l.under Volt)
Monitoring munera:
Primary / secundarium augmenta et terra excursus
Directio
Prima / secundarium linea et tempus voltages
Apparent potentia et potentia factor
Reactive reale potentia
Historical Record
Positive Phase Sequentia Voltage & Current
Negative Phase Sequentia Voltage & Current
Nulla Phase Sequentia Voltage
Frequentia
Binarii initus / output status
Script circuitu sanus / defectum
Et diem
Culpa Records
Vicis records
● RPS pluma
Qualis III mm immaculatam ferro sunt ad tristique, quod est disposito ad maximum robustness et
Minimum Welding linea ad minimize corrosio et specie praestare salutem
Operatio personas etiam cum internum arcus vitiis ad maximum culpa facultatem ad tristique in RPS potest
Resistat quod internum culpa sine sensu calidum gasorum.
In independens ver operationem mechanism capere rockwill ® Patentes spiralis vere, providet guaranteed onus
Conteram culpa facere facultatem per ensuring aperire et claudendo celeritate switch.
RPS provisum lucis reflectendo positio indicator quae directe connexa switch operating
Shaft providing patet et unambiguarum switch situ indication. Indicator est de lumine reflectendo materia, quae
Facile visibilis terra campester usque nocte in driving pluvia.
● Main novum commoda RPS
Supple specialis consilio manual claudendo fabrica technology cum suis patent, quod applicari normalis et
abnormes situ claudendo. Est claudendo celeritate (tempus) propinquos meos cum Iec62271-100.
Hoc munus potest offset a magnetica actuator culpa, quae cum actuator non operari non faciam maior accidente.

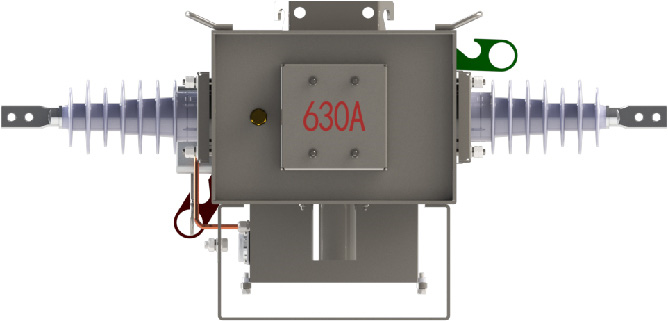

ROSIO repugnant, composita Bushing

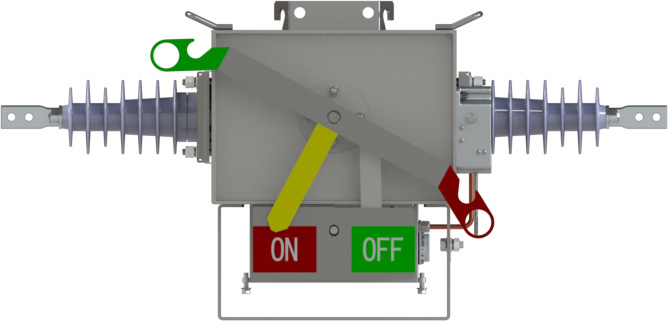

Manual cincinno-sicco mechanism (inter hook lignum)
Reliable Housing terra
O / C indicator (factum de lumine reflectendo materia),
Operatio contra, Gas densitas MODULUS quae facile
visibilis terra campester.
Advanced et integrated Helium Leakage Detecting
et implens apparatu, quod cursus SF6 Leakage
Quisque switch est minus quam 0.1% stricte per annum.
Motricium coegi, quae facile retrofitted in locum
manually operated unitates.
● creepage distantiis de RPS
Terminatio ad terram creatos | 5Kv Bil XCV / 110KV | 27KV BIL125 / 150KV | 38KV Bil CLXX / 200KV |
Composita Bushing | 564mm | 840mm | 1400mm |
Porcelain bushing | 556mm | 708mm | 1250mm |
● Current Verto et Voltage sensorem
Pars numerus | RPS, XV | RPS, XXVII | RPS, XXXVIII | |||
Manual | Motorize | Manual | Motorize | Manual | Motorize | |
Current Transformer | / | 3 | / | 3 | / | 3 |
Voltage sensorem | / | 3/6 | / | 3/6 | / | 3/6 |
Nota: Current Transformers et Voltage sensorors potest esse customized secundum ad requisita.
● signa ad reference
IEC 62271-1 Iec62271-102 IEC 62271-103
Summus voltage switchgear et control. Part CIII: Switches enim rated voltage supra I kv usque ad et inter LII KV

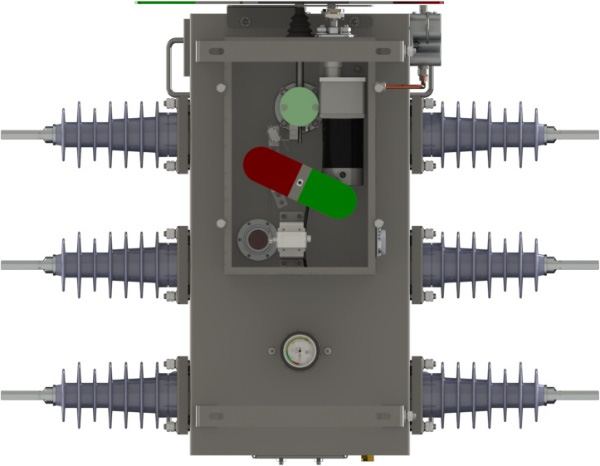

Front: Color purgare o / C indicator

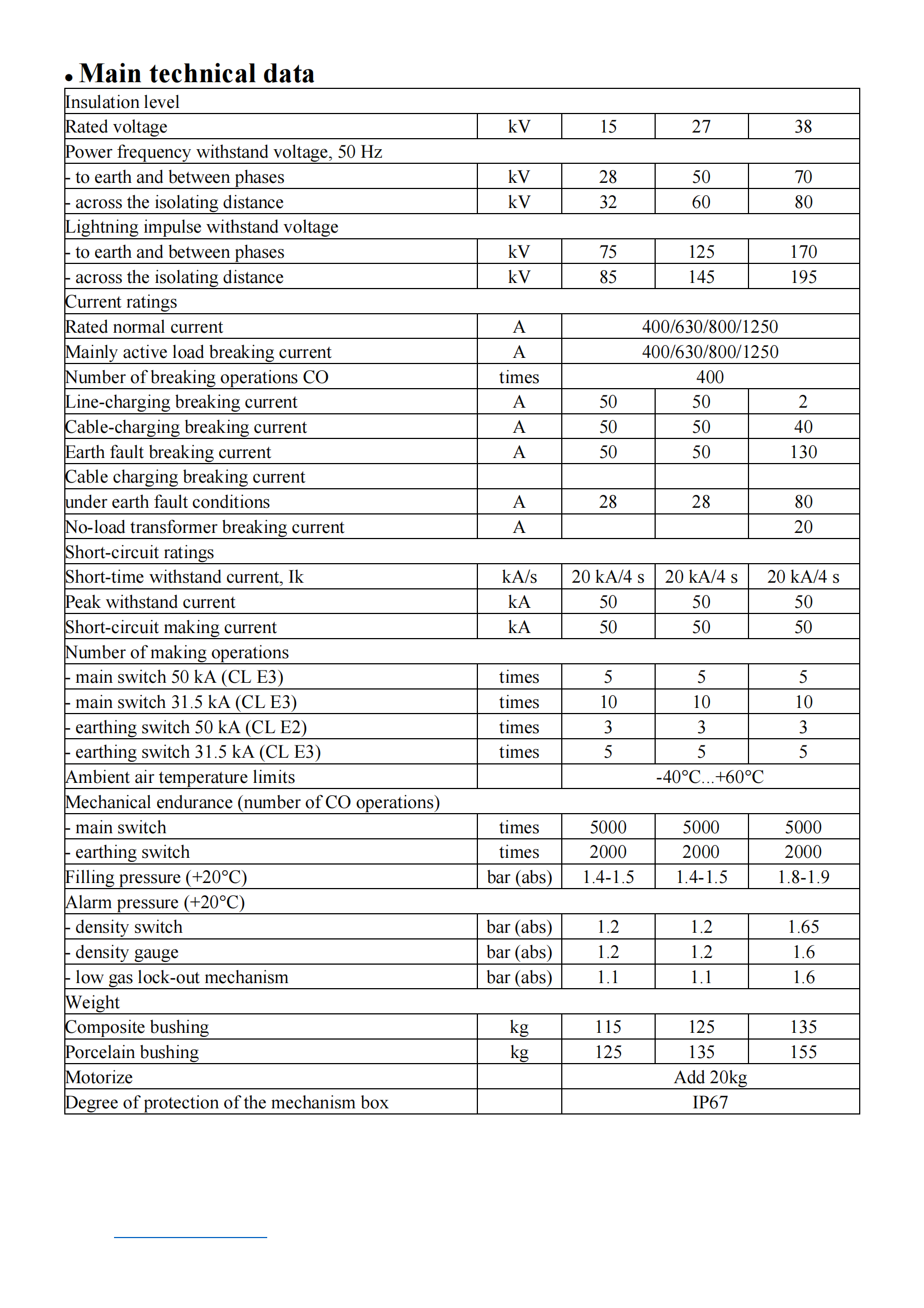

● Main Technical Data
