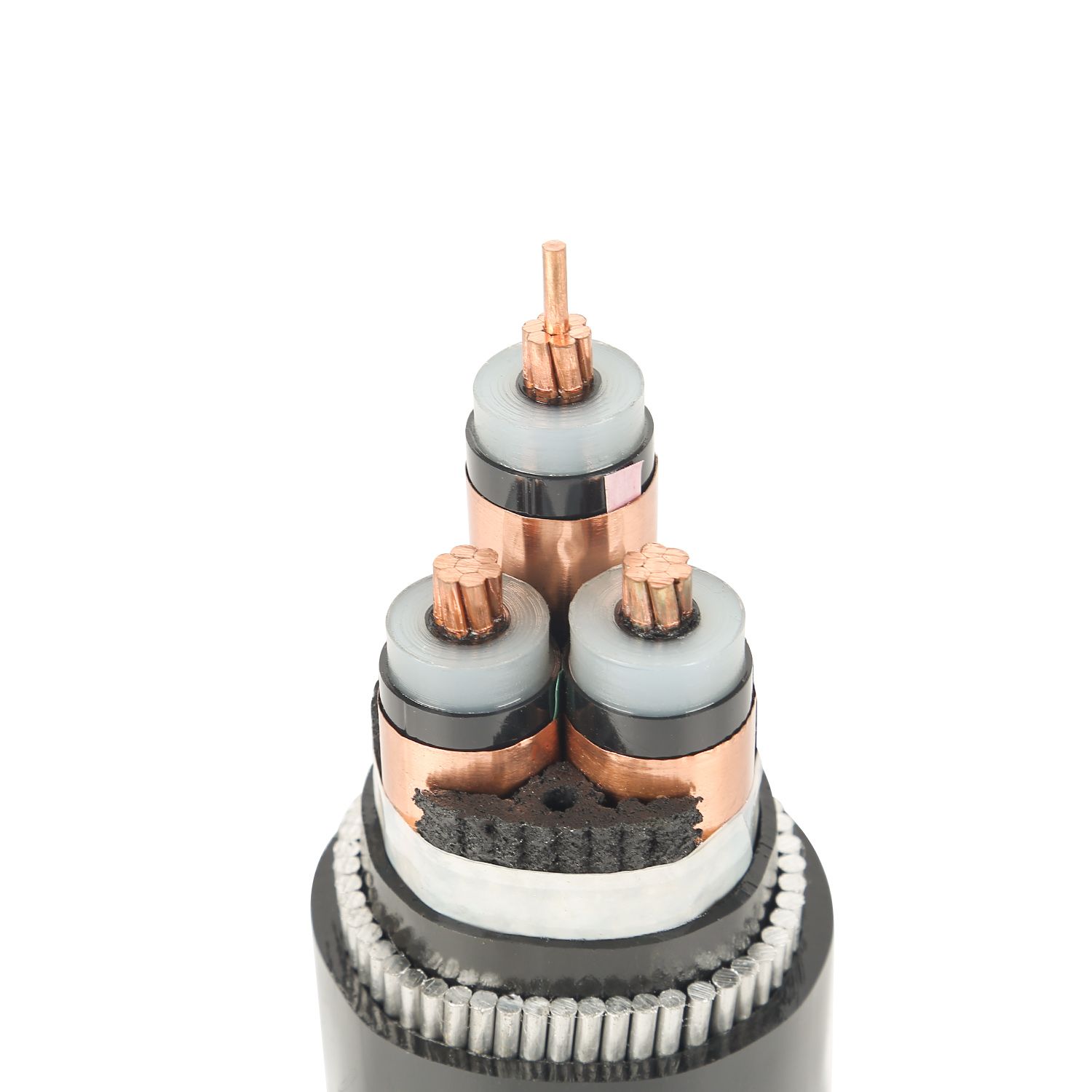

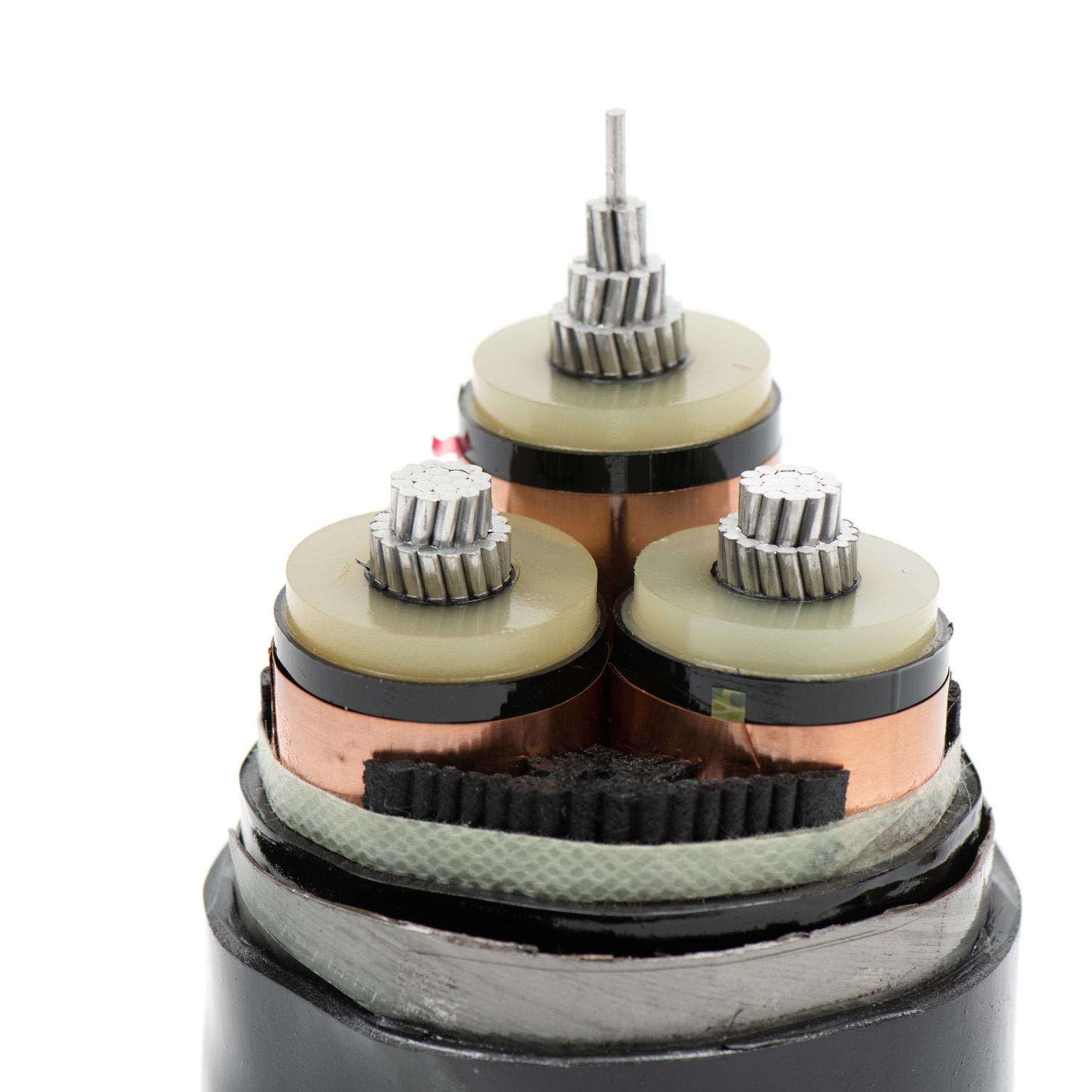

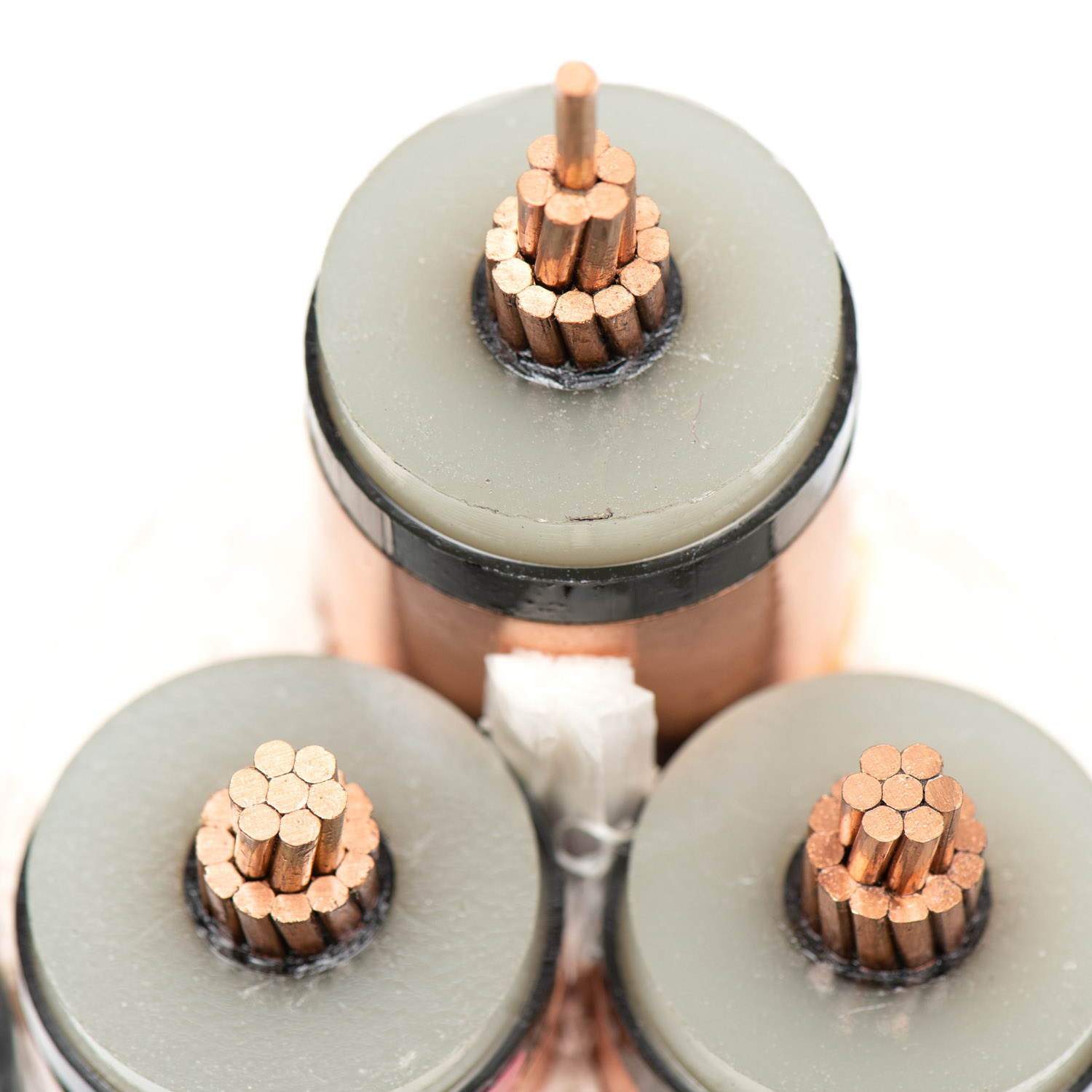

6KV triplici aeris xlpe ferro armis distributio funem

5 0 Recensiones

Medium intentione (Mv) Power Cables sunt disposito ad efficienter transmittit electrica potentia ad voltage campester typically vndique a I kv ad XXXVI, commercial, et utilitatem components in Industrial, commercial, et utilitatem distribution networks, commercial, et utilitatem distribution networks, commercial, et utilitatem distribution retiacula, commercial, et utilitatem components in Industrial, commercial et utilitatem distribution retiacula. Hae cables statera diuturnitatem, salus, et perficientur, ensuring reliable industria translatione in exposuisse environments ut subterraneis installations, caput systems, et substantias.

quantitas;
Cross Sectional Area;	25-630
Availability:





Inquire Addere ad cartallum

model;
Yjv
Code;
8544601290

Product Description

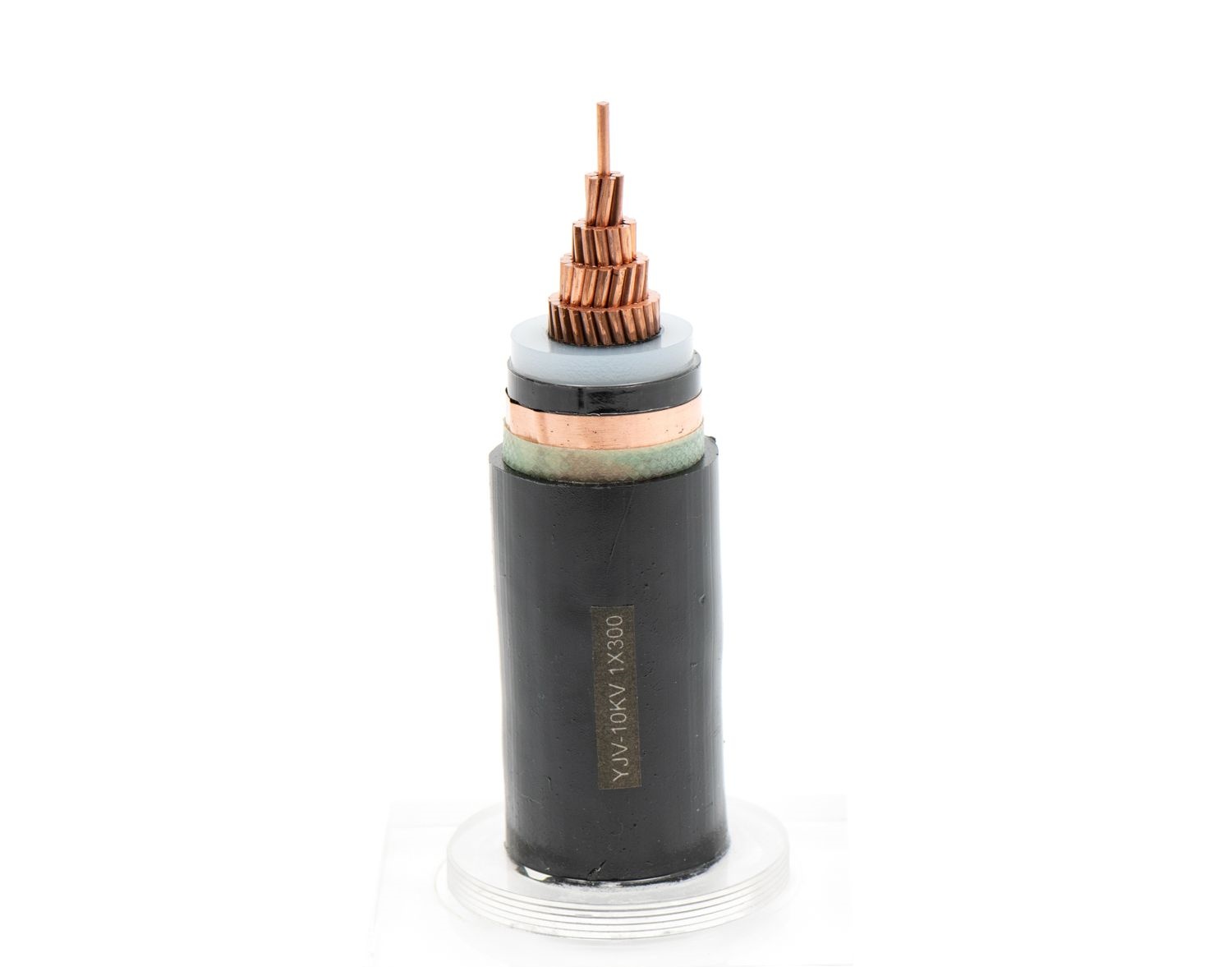

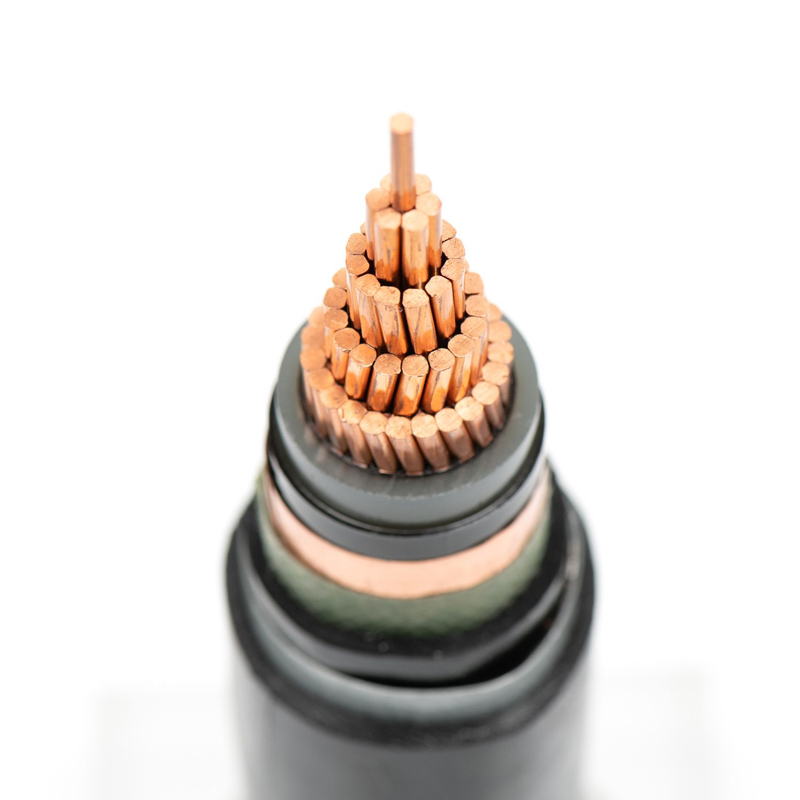

YJV Medium Voltage Power Cable - 1kV ad 36kV (XLPE Insulated)

Product Overview

Type: Medium Voltage (MV) potentiae funis
Exemplar: YJV
HS Code: 8544601290
Voltage range: 1kV – 36kV (focus: 6kV, 6/10(12)kV)
Crucis-section: 25–630 mm²

Core structure:

Conductor (Cu/Al, IEC 60228) → Conductor velum → XLPE/EPR Nulla → Insulatio velum → Scutum metallicum → Vagina exterior (PVC/LSZH/HDPE)

Applications

Sector	Exempla
Power Distribution	Substantiae, transformers, switchgear
Industriae	Mining, oleum & felis, vestibulum
Renewable Energy	Venti praedia, pomaria solaria, hydropower
Infrastructure	Metro, nisl, hospitalia

Key features

Pluma	Descriptio
Efficientia	Damna dielectric humilis, industria vastum reducta
Diuturnitas	Humori repugnant, chemicals, UV, abrasione
Salus	Flamma retardans, fumus humilis (IEC 60332, IEC 61034).
Mollitia	CATAFRACTATUS (SWA / ATA) vel inermes optiones
Lifespan	> XXX annis sub vexillum conditionibus

Signa Obsequium

Standard	Scope
IEC 60502, IEC 60228	Funis internationalis signa
IEEE 386, IEEE 575, AEIC CS8, NEMA WC 74	Industria signa

Temperature Ratings

Conditio	XLPE	EPR
Normalis operatio	-40°C ad +90°C	-50°C ad + 105°C
Brevis circuitus	Usque ad +250°C	Usque ad +250°C

Technical Data (Typical)

Res	eae
Nulla resistentia	>1000 MΩ·km @20°C
Dielectric viribus	3.5-30 kV/mm
Contere resistentiam	>10 kN/m (IEC 60229)
Ignis salus	IEC (LX) CCCXXXII (flamma retardant), IEC (LXI) XXXIV (humilis fumi)

Available configurationes (6/6kV, 6/10(12)kV)

Conductor	Armor	Vagina
inermis	Cu / Al	Nullus	PVC
Armatae filum	Cu / Al	SWA / AWA	PVC
Tape armato	Cu / Al	STA / ATA	PVC

Singulus core et tres nuclei optiones in promptu sunt.

Technical notitia

Property	Specification
Nulla resistitur	> M mΩ · km ad XX °
Dielectric fortitudinem	3.5-30 KV / mm (fretus in voltage gradu)
Ignis resistentia	'IEC (LX) CCCXXXII (flamma retardant), IEC (LXI) XXXIV (humilis fumi) '
Contundito resistentia	> X kn / m (probata per IEC (LX) CCXXIX)

Detailed cubits

VI / 6kv, 6/10 (XII) Kv, xlpe insulated unarmored PVC pascitur potestatem funem

Single-Core, Cu / xlpe / PVC aut al / xlpe / PVC

Dondore Nominal Area (MM⊃2;)	Triticum Crassitudo (mm)	exterius vagina crassitudine (mm)	proxime. Altiore diameter (mm)	proxime. Pondus rhoncus (kg / km)		vexillum Longitudo per tympanum (m)
				Aes	Aluminium
16	3.4	1.8	20	450	350	500
25	3.4	1.8	21	560	400	500
35	3.4	1.8	22	680	460	500
50	3.4	1.8	24	810	520	500
70	3.4	1.8	25	1,050	620	500
95	3.4	1.8	27	1,320	730	500
120	3.4	1.8	28	1,580	840	500
150	3.4	1.9	30	1,880	960	500
185	3.4	1.9	32	2,250	1,100	500
240	3.4	2.0	34	2,870	1,350	500
300	3.4	2.1	37	3,490	1,580	500
400	3.4	2.2	40	4,350	1,920	500
500	3.4	2.3	44	5,440	2,320	500
630	3.4	2.4	48	6.860	2,830	500
800	3.4	2.5	52	8,600	3,430	400
1.000	3.4	2.6	56	10,630	4,150	300

Tres-core, cu / xlpe / PVC aut al / xlpe / pvc

Dondore Nominal Area (MM⊃2;)	Triticum Crassitudo (mm)	exterius vagina crassitudine (mm)	proxime. Altiore diameter (mm)	approx.cable pondus (kg / km) vexillum		longitudinem per tympanum (m)
				Aes	Aluminium
16	3.4	2.1	39	1,410	1,110	500
25	3.4	2.2	42	1,800	1,320	500
35	3.4	2.3	45	2,170	1,500	500
50	3.4	2.4	47	2,630	1,730	500
70	3.4	2.5	51	3,400	2,110	500
95	3.4	2.6	55	4,310	2,510	500
120	3.4	2.7	58	5,150	2,860	500
150	3.4	2.9	62	6,100	3,300	500
185	3.4	3.0	66	7,310	3,810	500
240	3.4	3.1	71	9.290	4,680	400
300	3.4	3.3	76	11.240	5,450	300
400	3.4	3.5	83	14.040	6,660	250
500	3.4	3.7	91	17.530	8.050	200

VI / 6kv, VI / X (XII) Kv, xlped insulated filum armis PVC pusillae potestatem cable

Single-Core, Cu / xlpe / Awa / PVC et al / xlpe / awa / PVC

Dondore Nominal Area (MM⊃2;)	Triticum Crassities (mm)	approx.inner covering crassitiem (mm)	armis mole (mm)	exterius vagina crassitudine (mm)	proxime. Altiore diameter (mm)	proxime. Pondus rhoncus (kg / km)		vexillum Longitudo per tympanum (m)
						Aes	Aluminium
16	3.4	1.2	1.6	1.8	26	770	670	500
25	3.4	1.2	1.6	1.8	27	910	750	500
35	3.4	1.2	1.6	1.8	28	1,040	820	500
50	3.4	1.2	1.6	1.8	29	1,190	900	500
70	3.4	1.2	1.6	1.9	31	1,470	1,040	500
95	3.4	1.2	1.6	2.0	33	1,780	1,190	500
120	3.4	1.2	2.0	2.0	35	2,150	1,410	500
150	3.4	1.2	2.0	2.1	37	2,480	1,560	500
185	3.4	1.2	2.0	2.1	39	2,890	1,730	500
240	3.4	1.2	2.0	2.2	41	3,570	2,050	500
300	3.4	1.2	2.0	2.3	44	4,230	2,330	500
400	3.4	1.3	2.5	2.4	48	5,320	2,890	500
500	3.4	1.3	2.5	2.5	52	6,500	3,380	500
630	3.4	1.4	2.5	2.6	56	8.020	3,990	400

Tres-Core, Cu / xlpe / SWA / PVC et al / XL / SWA / PVC

Area Area (MM⊃2;) Triticum crassitiem	(mm)	. Interiore covering crassitudine (mm)	armis mole (mm) exterius	vagina crassitiem (mm)	proxime. Altiore diameter (mm)	proxime. Pondus rhoncus (kg / km)		vexillum Longitudo per tympanum (m)
						Aes	Aluminium
16	3.4	1.3	2.5	2.4	47	3,700	2,700	500
25	3.4	1.3	2.5	2.5	50	3,900	3,430	500
35	3.4	1.3	2.5	2.6	53	4,430	3,770	500
50	3.4	1.4	2.5	2.7	56	5.080	4,190	500
70	3.4	1.5	2.5	2.8	60	6,050	4,750	500
95	3.4	1.5	2.5	2.9	64	7,180	5,380	500
120	3.4	1.6	2.5	3.0	67	8.230	5,960	400
150	3.4	1.7	3.15	3.2	72	10,100	6,580	300
185	3.4	1.7	3.15	3.3	76	11,610	8,110	300
240	3.4	1.8	3.15	3.5	82	14.10	9.510	250
300	3.4	1.9	3.15	3.7	87	16,420	10,630	200
400	3.4	2.0	4.0	4.0	96	21,700	12,880	200
500	3.4	2.2	4.0	4.2	104	25,280	15,800	200

VI / 6kv, VI / X (XII) Kv, xlpe insulatas tape armis PVC pusilla

Single-Core, Cu / xlpe / ATA / PVC aut al / xlpe / ATA / PVC

Dondore Nominal Area (MM⊃2;)	Triticum Crassities (mm)	approx.inner covering crassitiem (mm)	armis mole (mm)	exterius vagina crassitudine (mm)	proxime. Altiore diameter (mm)	proxime. Pondus rhoncus (kg / km)		vexillum Longitudo per tympanum (m)
						Aes	Aluminium
16	3.4	1.2	0.5	1.8	25	680	580	500
25	3.4	1.2	0.5	1.8	26	810	650	500
35	3.4	1.2	0.5	1.8	27	940	720	500
50	3.4	1.2	0.5	1.8	28	1,090	790	500
70	3.4	1.2	0.5	1.9	30	1,350	920	500
95	3.4	1.2	0.5	1.9	32	1,650	1,060	500
120	3.4	1.2	0.5	2.0	33	1,940	1,190	500
150	3.4	1.2	0.5	2.0	35	2,240	1,320	500
185	3.4	1.2	0.5	2.1	37	2,650	1,500	500
240	3.4	1.2	0.5	2.1	39	3,290	1,770	500
300	3.4	1.2	0.5	2.2	41	3,940	2,030	500
400	3.4	1.3	0.5	2.3	45	4,860	2,430	500
500	3.4	1.3	0.5	2.4	49	5,990	2,880	500
630	3.4	1.4	0.5	2.5	52	7,480	3,450	500

Tres-Core, Cu / xlpe / STA / PVC aut al / XLX / STA / PVC

CD Area (MM .q) Triticum aestivum (mm)	approx.inner covering	crassitudine (mm )	armis filum magnitudine (mm),	vagina crassitudine (mm)	proxime. Altiore diameter (mm)	proxime. Pondus rhoncus (kg / km)		vexillum Longitudo per tympanum (m)
						Aes	Aluminium
16	3.4	1.3	0.2	2.3	44	2,220	1,900	500
25	3.4	1.3	0.5	2.4	47	2,660	2,180	500
35	3.4	1.3	0.5	2.5	50	3,110	2,440	500
50	3.4	1.4	0.5	2.6	53	3,650	2,750	500
70	3.4	1.5	0.5	2.7	56	4,510	3,220	500
95	3.4	1.5	0.5	2.8	60	5,510	3,710	500
120	3.4	1.6	0.5	2.9	64	6,450	4,180	500
150	3.4	1.7	0.5	3.1	68	7,500	4,700	400
185	3.4	1.7	0.5	3.2	71	8.830	5,330	400
240	3.4	1.8	0.5	3.3	77	10,960	6,360	300
300	3.4	1.9	0.5	3.5	82	13.090	7,300	250
400	3.4	2.0	0.8	3.8	91	16.910	9.530	200
500	3.4	2.2	0.8	4.0	99	20,720	11,250	200

Packaging & Shipping

Packaging: ligneus tympana vel chalybe roborati v (imperfectus involutus)
Labeling: IEC-obsequens (voltage, size, date)
Shipping: ISO continentia cum shockproof securitate
Repono: Arida, ventilata, nulla lux solis directa
